| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage |

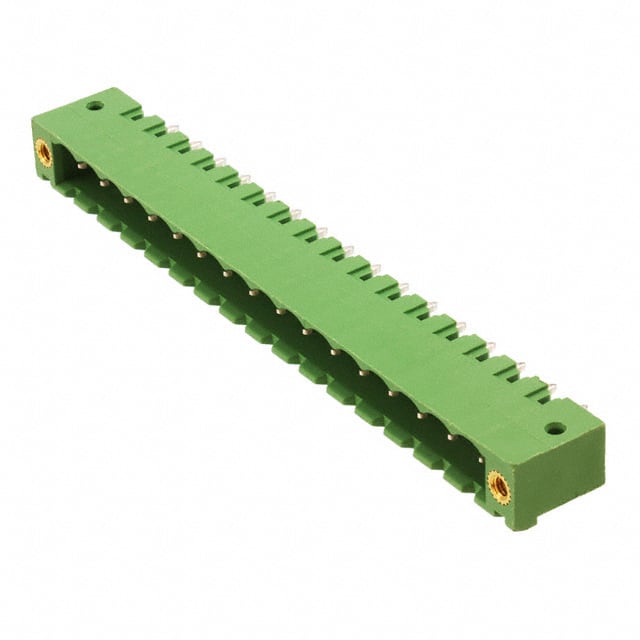

The Phoenix Contact 1777219 is a shrouded header with male pins, designed for terminal block applications. It offers 16 positions across a single level, with a pitch of 5.08mm (0.200 inches).
This header is rated for 300V and 12A, making it suitable for various power and signal applications. The termination style is solder, and the contact mating finish is tin. The header orientation is vertical, and it includes a mating and mounting flange for secure installation.
Key mechanical and electrical specifications include a green color, 16 positions per level, and a 1-level design. The component is designed for through-hole mounting with a solder termination style.
This part is part of the Headers, Plugs and Sockets category within Terminal Blocks. Its robust construction and electrical ratings make it a reliable choice for connecting wires in electronic systems.
The Phoenix Contact 1777219 header has 16 positions.
The pitch of the 1777219 terminal block header is 5.08mm (0.200").
The Phoenix Contact 1777219 has a current rating of 12A.
The voltage rating for the 1777219 header is 300V.
The 1777219 uses solder termination.
The mounting type is Through Hole.
