1777086 3 position terminal block header from Phoenix Contact with 5.08mm pitch, through hole mounting, vertical orientation, and shrouded design. Rated for 300V and 12A with tin contact finish.
Mfr Part #:

1777086

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
3 position terminal block header from Phoenix Contact with 5.08mm pitch, through hole mounting, vertical orientation, and shrouded design. Rated for 300V and 12A with tin contact finish.
✓ Total Stock: 1,980 pcs

1777086 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,930 pcs
On Request
1930 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1777086 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1777086 Description

Short technical summary and product information.

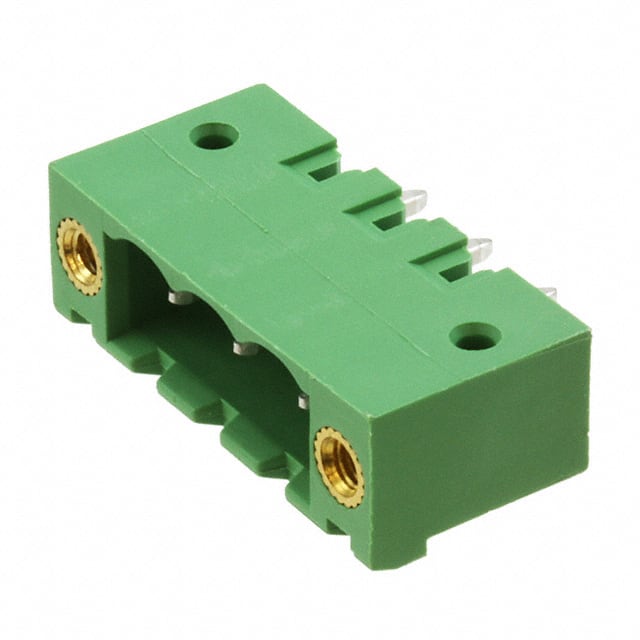

This terminal block header, part number 1777086 from Phoenix Contact, is a 3-position header with male pins and a shrouded (4 side) design. It features a pitch of 5.08mm (0.200 inches) and is designed for through hole mounting with solder termination. The header is oriented vertically. It is rated for 300V and 12A, with tin contact mating finish. The housing is green in color and includes a mating and mounting flange for secure connection. This component is suitable for use in industrial control systems, power distribution, and other applications requiring reliable wire-to-board connections. The shrouded design provides protection and alignment for mating connectors.

1777086 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, 3 Position, 5.08mm, Through Hole, Vertical, Shrouded (4 Side), Green
Subcategory: Terminal Block Headers

1777086 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1777086 Features

  • 3 positions with 5.08mm pitch spacing.
  • Through hole mounting with solder termination.
  • Rated for 300V and 12A operation.
  • Shrouded (4 side) header for mating protection.
  • Includes mating and mounting flange for secure attachment.

1777086 Applications

  • Ideal for industrial control panel wiring.
  • Suitable for power distribution applications.
  • Used in terminal block connectors for wire-to-board connections.
  • Common in automation and process control systems.

1777086 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

3 positions.

What is the pitch of this terminal block header?

5.08mm (0.200 inches).

What is the current rating?

12 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.
