1776605 12-position, 5.08mm pitch right angle shrouded header with male pins. Through-hole solder termination with tin contact finish and mating/mounting flange.
Mfr Part #:

1776605

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
12-position, 5.08mm pitch right angle shrouded header with male pins. Through-hole solder termination with tin contact finish and mating/mounting flange.
✓ Total Stock: 66 pcs

1776605 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
64 pcs
On Request
64 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1776605 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1776605 Description

Short technical summary and product information.

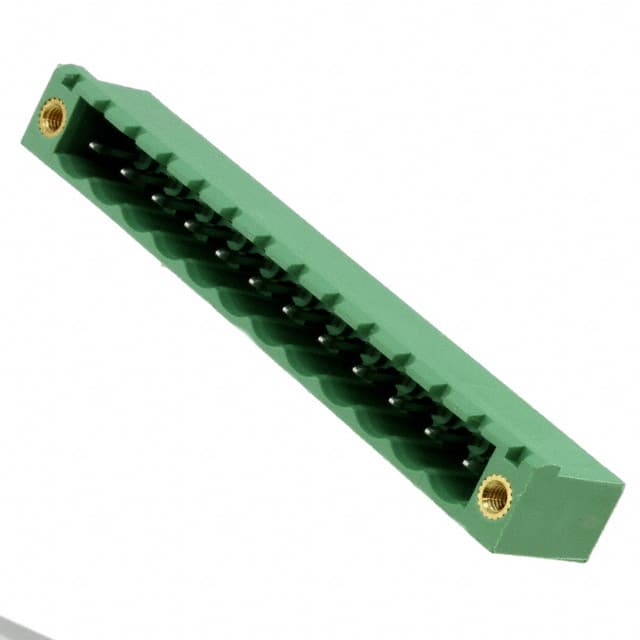

The Phoenix Contact 1776605 is a 12-position, single-level terminal block header with a 5.08mm pitch. It features a right angle orientation and through-hole mounting with solder termination. The header has shrouded male pins with a tin contact finish, providing reliable connections. It is rated for 15A current and 300V voltage. The green housing includes a mating and mounting flange for secure panel or PCB attachment. Suitable for industrial control systems, power distribution, and signal wiring applications.

1776605 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Canonical Name: Phoenix Contact 1776605 - 12 Position 5.08mm Right Angle Header
Subcategory: Headers

1776605 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1776605 Features

  • 12-position, 5.08mm pitch right angle header.
  • Shrouded male pins for secure connections.
  • Rated for 15A current and 300V voltage.
  • Through-hole solder termination with tin finish.
  • Features mating and mounting flange.

1776605 Applications

  • Used in industrial control panel wiring.
  • Ideal for power distribution in PLC systems.
  • Suitable for signal and power connections.

1776605 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this header?

5.08mm

How many positions does it have?

12

What is the current rating?

15A

What is the voltage rating?

300V

What is the mounting type?

Through Hole

What is the termination style?

Solder

What is the contact finish?

Tin
