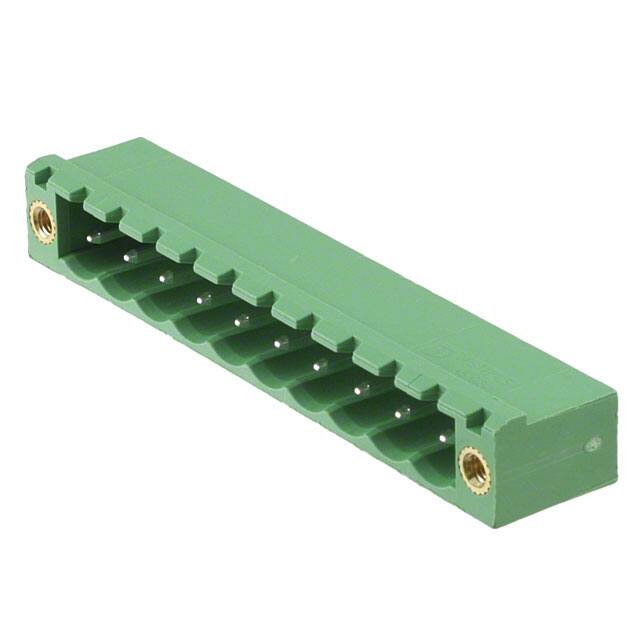

1776582 10 position terminal block header with 5.08mm pitch, through hole mounting, right angle orientation, and tin contacts. Features mating and mounting flange.
Mfr Part #:

1776582

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
10 position terminal block header with 5.08mm pitch, through hole mounting, right angle orientation, and tin contacts. Features mating and mounting flange.
✓ Total Stock: 330 pcs

1776582 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
290 pcs
On Request
290 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1776582 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Industrial Grade
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1776582 Description

Short technical summary and product information.

This terminal block header from Phoenix Contact, part number 1776582, is a 10-position single-level header with a 5.08mm pitch. It features through hole mounting with a right angle orientation, making it suitable for compact PCB layouts where space is constrained. The header is shrouded on all four sides, providing protection to the male pins. The contact mating finish is tin, ensuring reliable electrical connections. Mating and mounting flanges are included for secure attachment and proper alignment with mating connectors. The header is rated for 300V and 15A, suitable for power and signal distribution in industrial applications. The housing is green in color, typical of Phoenix Contact terminal block components. Termination is via solder for permanent connections.

1776582 Quick Information

Product Type: Terminal Block Header
Canonical Name: Terminal Block Header, 10 Position, 5.08mm, Through Hole, Right Angle, Tin
Subcategory: Shrouded Header

1776582 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1776582 Features

  • 10 positions on a single level with 5.08mm pitch.
  • Through hole mounting with right angle orientation.
  • Shrouded header with mating and mounting flange.
  • Tin plated contacts for reliable connectivity.
  • Rated for 300V and 15A.

1776582 Applications

  • Used in industrial control and automation systems.
  • Suitable for power distribution in terminal blocks.
  • Ideal for wire-to-board connections in panels.

1776582 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

10 positions.

What is the pitch of this terminal block header?

5.08mm (0.200 inch).

What is the current rating of the 1776582?

15 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole, right angle.

What is the termination style?

Solder.

What special features does this header have?

Mating and mounting flange.
