| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

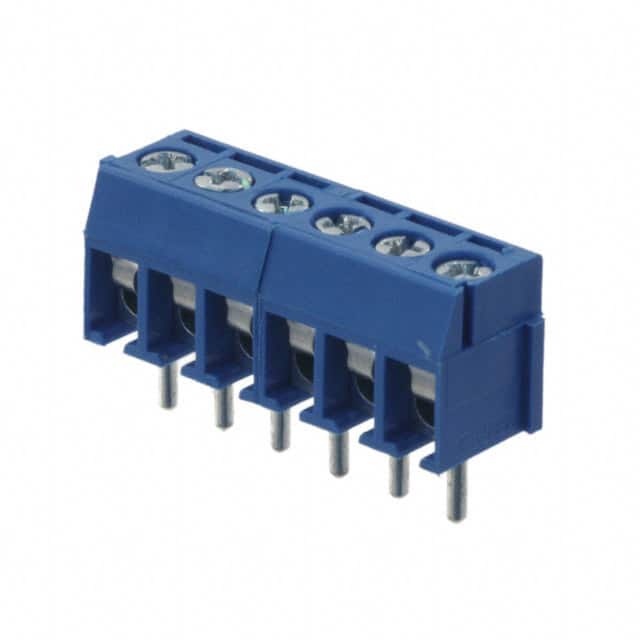

The TE Connectivity 1776275-6 is a 6-position wire-to-board terminal block designed for reliable PCB connections. It features a 3.5mm pitch and single-level configuration, allowing for compact wiring in space-constrained applications. The terminal block uses a screw termination with a leaf spring and wire guard, ensuring secure and stable wire connections for 18-26 AWG wires.
Rated for 7A and 250V, this terminal block is suitable for a variety of low-to-medium power applications. The through-hole mounting provides robust mechanical attachment to the PCB, while the side entry mating orientation facilitates easy wire routing. The blue housing and interlocking side feature allow for multiple blocks to be stacked side-by-side for additional positions.
This component is commonly used in industrial control, lighting, and power distribution systems where reliable wire-to-board connections are required. The interlocking design ensures alignment and stability when using multiple blocks in a row.
6 positions in a single level.
3.5mm (0.138 inches).
7A.
250V.
Through hole.
18-26 AWG.
Screw with leaf spring and wire guard.
