| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

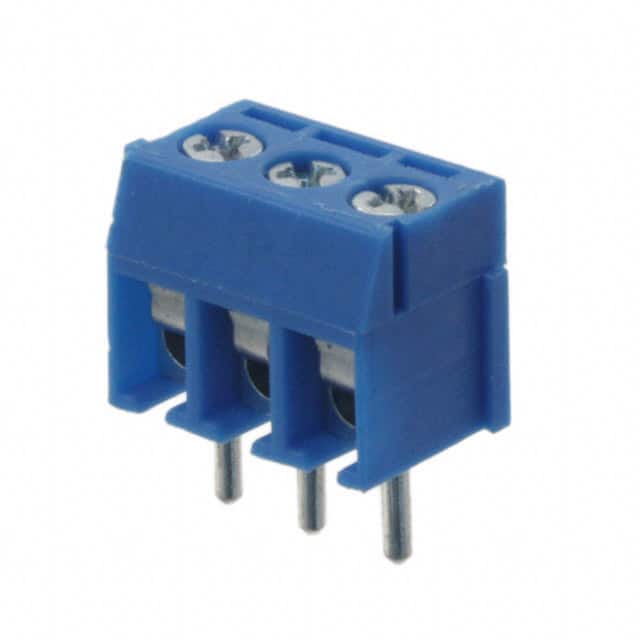

The TE Connectivity 1776275-3 is a 3-position wire-to-board terminal block with a 3.5mm pitch, designed for through hole mounting. It features a screw termination with leaf spring and wire guard, providing secure wire connections for 18-26 AWG wires. The mating orientation is horizontal with the board, making it suitable for side entry applications.
This terminal block is rated for 7A current and 250V voltage, making it suitable for low to moderate power distribution in control systems and industrial equipment. The blue housing and side interlocking feature allow for modular assembly of multiple blocks without additional hardware.
Key specifications include a 3.50mm pitch, single level, and 3 positions. The through hole mounting ensures reliable mechanical attachment to PCBs. The component is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited).
3 positions.
3.50mm.
7 A.
250 V.
Through Hole.
18-26 AWG.
Screw - Leaf Spring, Wire Guard.
