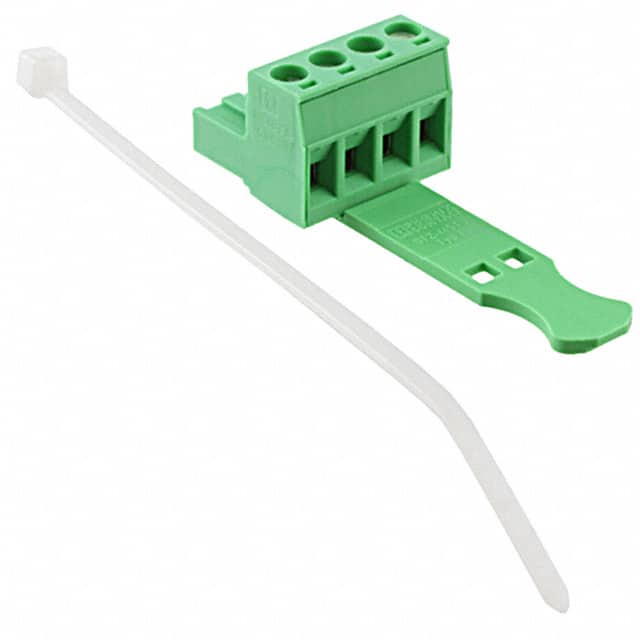

1776155 Phoenix Contact 1776155 is a 4-position plug with female sockets, 5.08mm pitch, rated 12A and 320V. It features screw connection with rising cage clamp and is free hanging (in-line).
Mfr Part #:

1776155

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1776155 is a 4-position plug with female sockets, 5.08mm pitch, rated 12A and 320V. It features screw connection with rising cage clamp and is free hanging (in-line).
✓ Total Stock: 55 pcs

1776155 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1776155 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1776155 Description

Short technical summary and product information.

The Phoenix Contact 1776155 is a 4-position plug component from the MSTB 2,5/..-STZ series. It uses a screw connection with rising cage clamp termination and is designed for free hanging (in-line) mounting. The pitch is 5.08 mm and the plug wire entry is 180°.



Electrical ratings include a nominal current of 12 A and rated voltage of 320 V (III/2) or 630 V (II/2). The rated surge voltage is 4 kV across all overvoltage categories. The insulating material is PA with flammability class UL 94 V0. Contact mating finish is tin.



The plug accepts solid or stranded conductors from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG). Stripping length is 7 mm and tightening torque range is 0.5 Nm to 0.6 Nm with an M3 screw thread. Features include retention latches (non-wire side) and strain relief.

1776155 Quick Information

Product Type: Terminal Block Plug
Series: MSTB
Canonical Name: Phoenix Contact MSTB 2,5/ 4-STZ-5,08 Plug, Female Sockets
Subcategory: Headers, Plugs and Sockets

1776155 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1776155 Features

  • 4 positions with 5.08 mm pitch.
  • Rated 12 A and 320 V (III/2).
  • Screw connection with rising cage clamp.
  • Free hanging (in-line) mounting style.
  • UL 94 V0 flammability rated insulation.

1776155 Applications

  • Ideal for industrial control cabinet wiring.
  • Used in power distribution terminal blocks.
  • Suitable for sensor and actuator connections.
  • Common in building automation systems.

1776155 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1776155 have?

It has 4 positions.

What is the pitch of this terminal block plug?

The pitch is 5.08 mm.

What is the current rating of the 1776155?

The nominal current is 12 A.

What is the voltage rating of the 1776155?

Rated voltage is 320 V (III/2) and 630 V (II/2).

What mounting type does the 1776155 use?

It is free hanging (in-line) mounting.

What wire gauge range does the 1776155 accept?

It accepts 0.2-2.5 mm² (24-12 AWG) solid or stranded conductors.

What is the flammability class of the 1776155?

The insulating material is rated UL 94 V0.
