| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Halogen Free | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

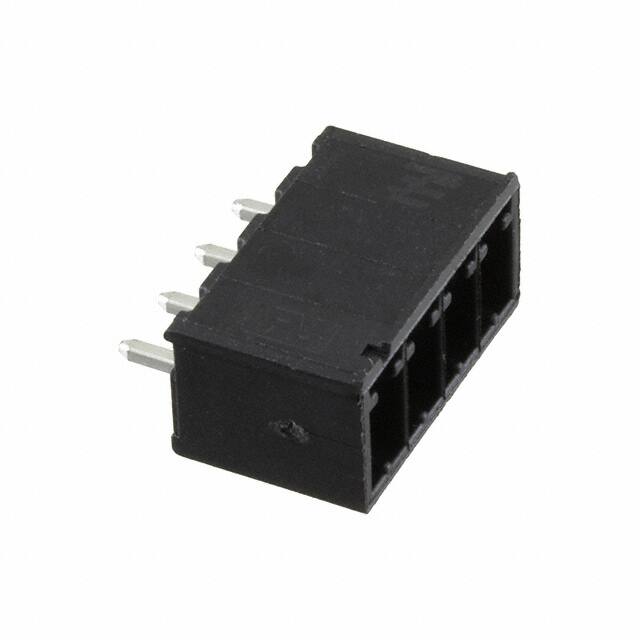

The TE Connectivity 1776130-4 is a terminal block header designed for reliable wire-to-board connections in industrial and commercial applications. It features 4 positions arranged in a single level with a 3.50mm pitch, making it suitable for compact PCB layouts.
The header uses a shrouded (4 side) design with male pins and tin-plated contacts for good solderability and corrosion resistance. It is rated for 11A current and 300V voltage, with an operating temperature range of -40°C to 110°C. The black housing provides clear visual identification.
Mounting is through hole with solder termination, and the vertical orientation allows for straightforward PCB integration. This component is commonly used in power distribution, control systems, and automation equipment where secure and organized connections are required.
The 1776130-4 has 4 positions.
The pitch is 3.50mm (0.138 inches).
It is rated for 11A current and 300V voltage.
It uses through hole mounting with solder termination.
