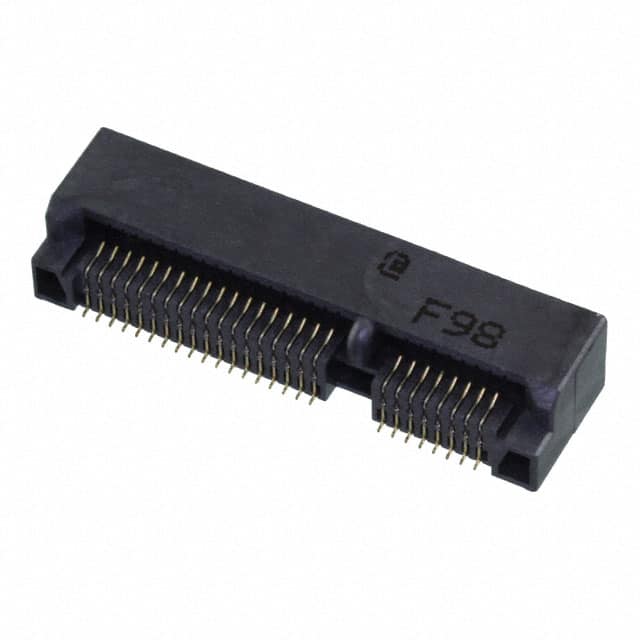

The TE Connectivity 1775838-2 is a PCI Express Mini Card edge connector designed for reliable board-to-card connections in compact electronic systems. This female connector features 52 positions arranged in two rows with a 0.80mm pitch, enabling high-density interconnects for miniaturized designs.
Key specifications include a dual readout configuration, gold contact finish with flash thickness over copper alloy contacts, and a board guide feature for accurate mating. The connector supports surface mount right angle mounting, making it suitable for space-constrained applications where the card inserts parallel to the PCB.
The operating temperature range spans -55°C to 85°C, ensuring performance across industrial and commercial environments. The connector is black in color and accepts PCI Express Mini Cards with a thickness of 1.00mm. Termination is via solder, and the part is available in tape and reel packaging options through distributors.
The pitch is 0.80mm (0.031 inches).
The connector has 52 positions (title indicates 52POS; attribute data shows 8; 18 — verify with datasheet).
Surface mount, right angle.
-55°C to 85°C.
PCI Express Mini Card.
