| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

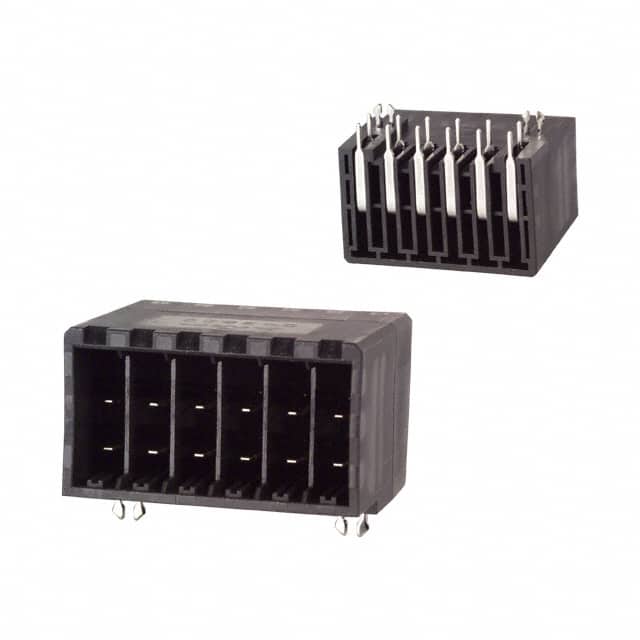

The TE Connectivity 177555-5 is a shrouded header connector designed for board-to-board or cable applications. It has 12 positions arranged in 2 rows with a 5.08mm pitch and row spacing of 5.08mm. The header is fully shrouded with a 4-wall design and includes a detent lock for secure mating. The contact type is tab, made of copper alloy with tin finish (78.7µin thickness). The insulation material is thermoplastic, polyester, glass filled, rated UL94 V-0, color black. This connector is through-hole mounted, right angle orientation, with solder termination. It features a board lock for additional retention. Operating temperature range is -55°C to 105°C, voltage rating 600V. The header is RoHS3 compliant, REACH unaffected, with MSL 1 (unlimited).
It has 12 positions arranged in 2 rows.
The pitch is 5.08mm, with the same row spacing.
The voltage rating is 600V.
It is through-hole mounted with a right-angle orientation.
The operating temperature range is -55°C to 105°C.
The contacts are copper alloy with a tin finish (78.7µin thickness).
Yes, it is marked as RoHS3 compliant, but this is unverified from the original document.
