| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,132 pcs
|
3132 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

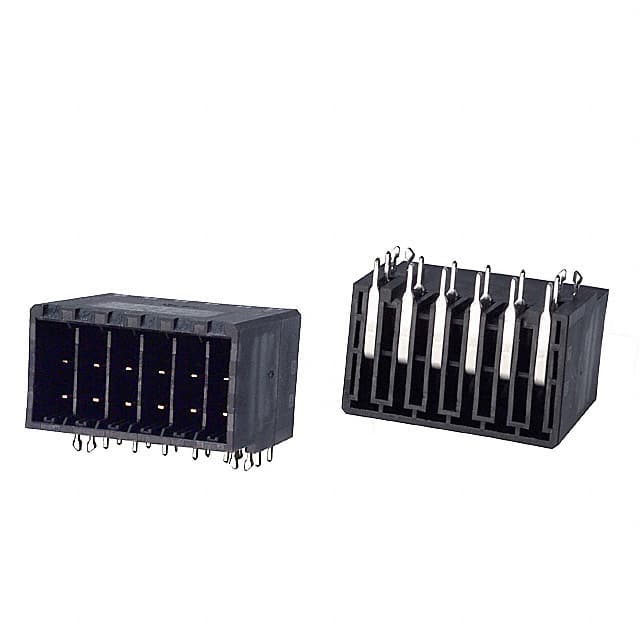

The TE Connectivity 177555-2 is a 12-position, 2-row shrouded header designed for board-to-board or cable-to-board interconnects. It features a 5.08mm pitch and 5.08mm row spacing, with a through hole right angle mounting style for compact PCB layouts.
The header uses tin-plated copper alloy contacts with a contact finish thickness of 0.38µm, housed in a black thermoplastic polyester glass-filled insulator rated UL94 V-0. It includes a detent lock fastening system and a board lock feature for secure mating. The operating temperature range is -55°C to 105°C, and the voltage rating is 600V.
The 177555-2 has 12 positions, all loaded, in 2 rows.
The pitch is 5.08mm, with the same row spacing of 5.08mm.
The voltage rating is 600V.
It is through hole, right angle mounting with solder termination.
The operating temperature range is -55°C to 105°C.
Yes, it is a shrouded header with 4-wall shrouding and a detent lock fastening type.
