| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
350 pcs
|
350 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Tape & Reel | |
| Termination Style |

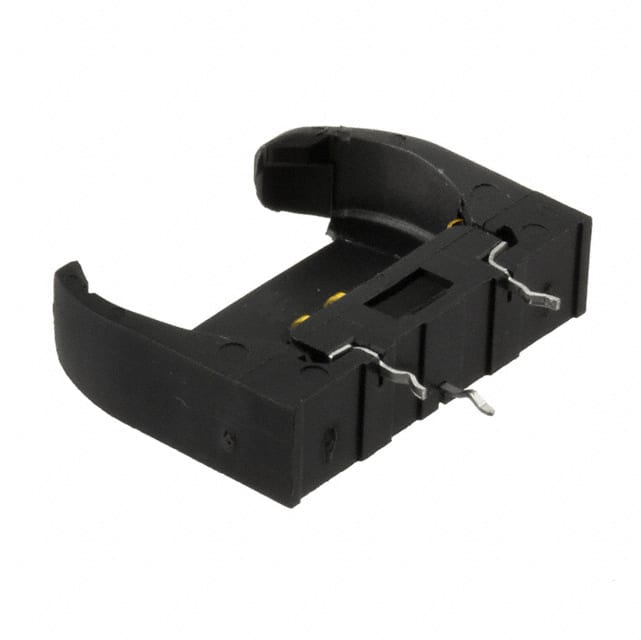

The TE Connectivity 1775485-1 is a through hole battery holder designed to accommodate a single 20mm coin cell, specifically the 2032 series. This holder features an open frame design, allowing easy insertion and removal of the battery. The termination style is PC pin, suitable for direct soldering to a printed circuit board.
This holder has a height above board of 0.730 inches (18.50mm), providing a low profile for compact electronic assemblies. It is RoHS3 compliant and REACH unaffected, with an MSL (Moisture Sensitivity Level) of 1, indicating unlimited floor life. The part number 1775485-1 is from TE Connectivity, a leading manufacturer of interconnect and battery products.
This battery holder is ideal for applications requiring reliable power backup or primary power from a coin cell. Common uses include real-time clocks, memory backup, portable electronics, and IoT devices. The through hole mounting ensures a robust mechanical connection to the PCB.
It accepts a 20mm coin cell, specifically the 2032 series.
It holds one cell.
Through hole PCB mounting.
PC pin termination.
Yes, it is marked as RoHS3 compliant, though this is unverified.
0.730 inches (18.50mm).
MSL Level 1, unlimited floor life, though unverified.
