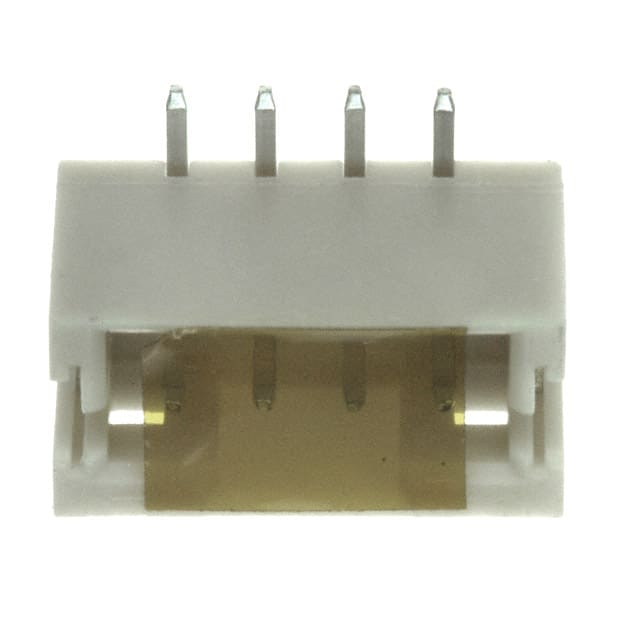

1775470-4 TE Connectivity 1775470-4 is a 4-position, single row shrouded header with 2.00mm pitch for surface mount applications. Rated at 3A and 250V, it features tin-plated brass contacts.
Mfr Part #:

1775470-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1775470-4 is a 4-position, single row shrouded header with 2.00mm pitch for surface mount applications. Rated at 3A and 250V, it features tin-plated brass contacts.
✓ Total Stock: 5,000 pcs

1775470-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
5,000 pcs
On Request
5000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1775470-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

1775470-4 Description

Short technical summary and product information.

The TE Connectivity 1775470-4 is a 4-position, single row shrouded header designed for board-to-cable/wire interconnects. It features a 2.00mm pitch and surface mount termination with solder retention for secure mounting. The header is fully shrouded with four walls, providing robust protection for the male pin contacts.



Contact material is brass with a tin finish (80.0µin thickness) and a square contact shape. The insulator is molded from polyamide (PA9T) nylon 9T in natural color with a UL94 V-0 flammability rating. Electrical ratings are 3A current and 250V voltage.



The operating temperature range is -25°C to 85°C. This component is suitable for automated SMT assembly and is compatible with reflow soldering processes, assuming an MSL classification of 1 (unlimited floor life) as noted in available data.

1775470-4 Quick Information

Product Type: Header, Male Pins
Canonical Name: 4 Position Single Row Shrouded Header, Surface Mount, 2.00mm Pitch
Subcategory: Header, Shrouded

1775470-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1775470-4 Features

  • 4-position, single row shrouded header.
  • 2.00mm pitch for compact designs.
  • Surface mount with solder retention.
  • Rated for 3A and 250V operation.
  • UL94 V-0 flammability rated insulator.

1775470-4 Applications

  • Board-to-cable and board-to-wire connections.
  • Compact electronic device interconnects.
  • Low-profile industrial control interfaces.

1775470-4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the 1775470-4 header?

The pitch is 2.00mm (0.079 inches).

How many positions does this connector have?

It has 4 positions loaded in a single row.

What is the current rating of the 1775470-4?

The current rating is 3A per contact.

What is the voltage rating?

The voltage rating is 250V.

What is the mounting type for this header?

Surface mount with solder termination.
