| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
285 pcs
|
285 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

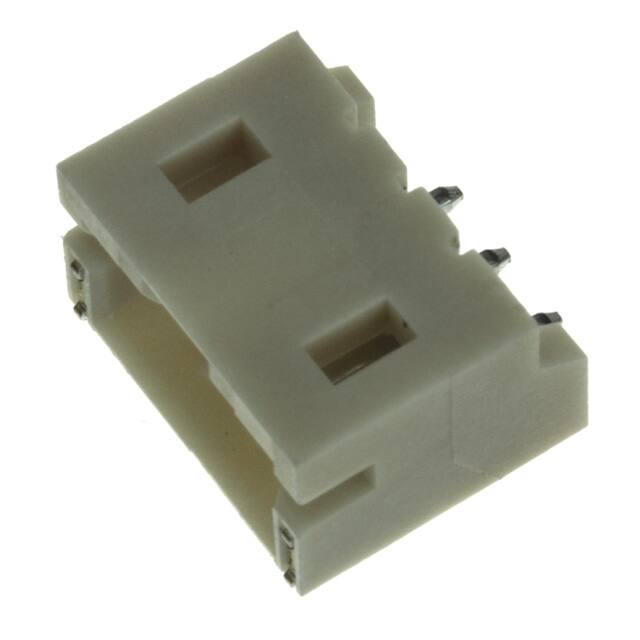

The TE Connectivity 1775469-3 is a 3-position header connector designed for board-to-cable/wire applications. It features a single row of male pins with a 2.00mm pitch, making it suitable for compact designs. The connector is surface mounted with a right-angle orientation, allowing for low-profile connections. Termination is via solder, and the header includes a shrouded 4-wall design for improved mating alignment and protection. Contacts are made of brass with a tin plating of 80.0µin (2.03µm), providing reliable conductivity and corrosion resistance. The insulation is natural-colored polyamide (PA9T) with a UL94 V-0 flammability rating. Electrical ratings include 3A current and 250V voltage. Operating temperature range is -25°C to 85°C. The connector also features solder retention for secure mounting during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
| 10+ | $0.47 | $0.47 |
| 600+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions, all loaded.
2.00mm (0.079 inches).
3A.
250V.
Surface mount, right angle.
-25°C to 85°C.
Tin, 80.0µin (2.03µm) thickness.
