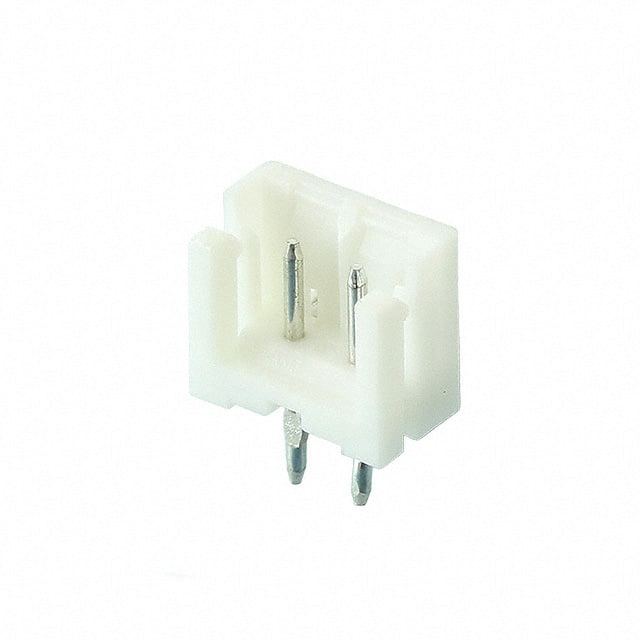

177537-2 TE Connectivity 177537-2 is a 2-position, single-row, shrouded header with male pins, 2.50mm pitch, through hole mounting, and friction lock fastening.
Mfr Part #:

177537-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 177537-2 is a 2-position, single-row, shrouded header with male pins, 2.50mm pitch, through hole mounting, and friction lock fastening.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.12 - $0.29

177537-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

177537-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

177537-2 Description

Short technical summary and product information.

The TE Connectivity 177537-2 is a 2-position, single-row header with male pin contacts designed for board-to-cable/wire applications. It features a shrouded 3-wall design with friction lock fastening for secure mating. The connector uses a 2.50mm pitch and is mounted via through hole with press-fit or solder termination.



The header is rated for 250VAC and has an operating temperature range of -25°C to 105°C. Contacts are made of brass with a tin finish, and the insulator is natural polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating. The insulation height is 6.48mm and contact length is 3.39mm.

177537-2 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 177537-2 Header, Male Pins, 2 Position, 2.50mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

177537-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

177537-2 Estimated Pricing

Qty Low High
1+ $0.29 $0.29
10+ $0.25 $0.25
25+ $0.22 $0.22
100+ $0.19 $0.19
250+ $0.17 $0.17
1,000+ $0.14 $0.14
3,000+ $0.13 $0.13
5,000+ $0.13 $0.13
10,000+ $0.12 $0.12

Estimated market price range - modelled values for guidance only, not live distributor offers.

177537-2 Features

  • 2-position single-row shrouded header.
  • 2.50mm pitch with friction lock.
  • Through hole press-fit or solder termination.
  • Rated for 250VAC operation.
  • UL94 V-0 flammability rated insulator.

177537-2 Applications

  • Board-to-cable/wire interconnect applications.
  • General purpose wire-to-board connections.
  • Low voltage signal and power distribution.

177537-2 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 177537-2 have?

The 177537-2 has 2 positions in a single row, all positions loaded.

What is the pitch of the 177537-2 header?

The pitch is 2.50mm.

What is the voltage rating of the 177537-2?

The voltage rating is 250VAC.

What mounting type does the 177537-2 use?

The 177537-2 uses through hole mounting with press-fit or solder termination.

What is the operating temperature range of the 177537-2?

The operating temperature range is -25°C to 105°C.

What is the insulation material and flammability rating?

The insulator is polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
