| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

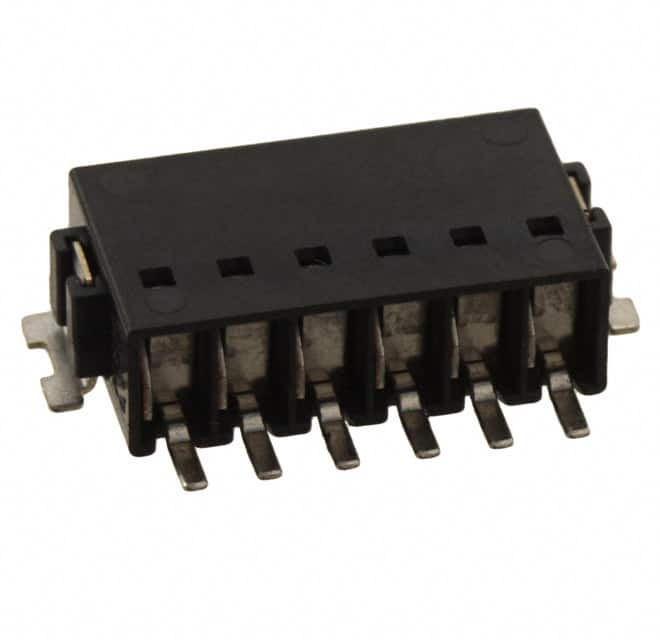

The Phoenix Contact 1771062 is a 6 position, single level, wire to board terminal block from the PTSM 0,5 series. It features a 2.5mm pitch and utilizes a screwless spring cage tension clamp termination for quick and reliable wire connections.
This terminal block is rated for 6A nominal current per EN standard and 5A per UL standard. The nominal voltage is 32V per EN and 150V per UL. It accepts solid conductors from 0.14 to 0.5 mm² and stranded conductors from 0.2 to 0.5 mm², corresponding to 20-26 AWG wire gauge. The required stripping length is 6 mm.
The component is designed for surface mount assembly (SMD) with a horizontal mating orientation relative to the PCB. It is constructed with a black LCP (Liquid Crystal Polymer) insulating material rated V0 flammability class per UL 94. The standard package quantity is 770 pieces per reel.
It has 6 positions.
The pitch is 2.5 mm.
The nominal current is 6 A per EN standard and 5 A per UL standard.
The nominal voltage is 32 V per EN standard and 150 V per UL standard.
It uses surface mount (SMD) assembly.
It accepts 20-26 AWG wire.
The insulating material is LCP with a V0 flammability class per UL 94.
