| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Lead Spacing | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present |

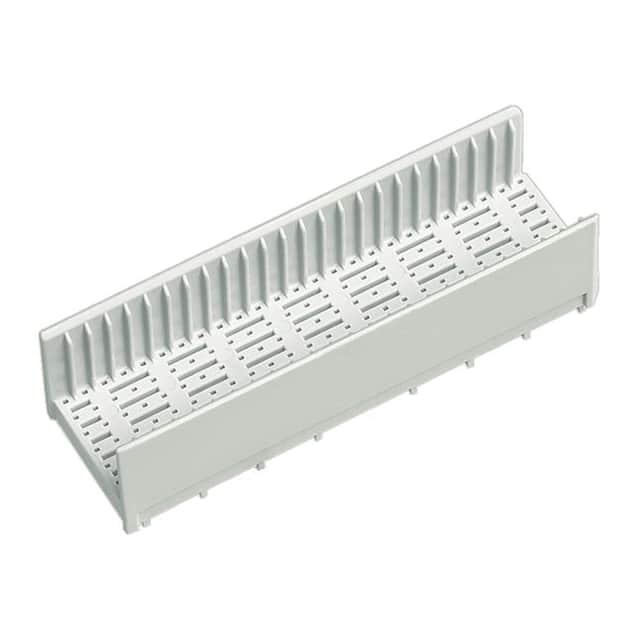

The Harting 17700004004 is a B22 shroud designed for use with male pins in backplane connector systems. This connector housing features 154 positions arranged in 7 rows with a pitch of 2.00mm (0.079 inches). The B22 connector style is commonly used in high-density backplane applications requiring reliable signal transmission. As a shroud, it provides mechanical protection and alignment for the male pins during mating. This component is categorized under backplane connector housings and is suitable for use in various industrial and data communication equipment where robust connectivity is required. The 2.00mm pitch allows for compact board-to-board connections while maintaining sufficient spacing for signal integrity.
154 positions.
2.00mm (0.079 inches).
B22.
Shroud for male pins.
7 rows.
