| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

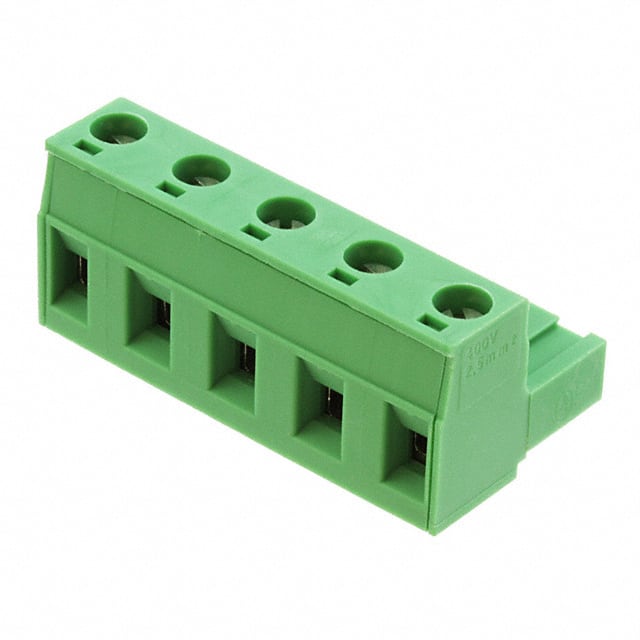

The Phoenix Contact 1767038 is a 5-position terminal block plug designed for reliable wire connections in industrial applications. It features female sockets with a 7.62mm pitch and accepts wire gauges from 0.2 to 2.5mm². The plug is rated for 15A at 300V, making it suitable for moderate power distribution and control circuits.
Termination is via a screw rising cage clamp mechanism, ensuring secure and vibration-resistant connections. The plug is free hanging (in-line) with a 180° wire entry, simplifying field wiring. Retention latches on the non-wire side provide additional mechanical security when mated with a header.
The housing is green and contacts have a tin mating finish. The component is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited), though these compliance claims are unverified. No datasheet is currently available.
The plug has 5 positions.
The pitch is 7.62mm (0.300 inches).
The current rating is 15 A.
The voltage rating is 300 V.
It uses free hanging (in-line) mounting.
Termination is screw - rising cage clamp.
It accepts 0.2 to 2.5 mm² wire.
