| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
500 pcs
|
500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

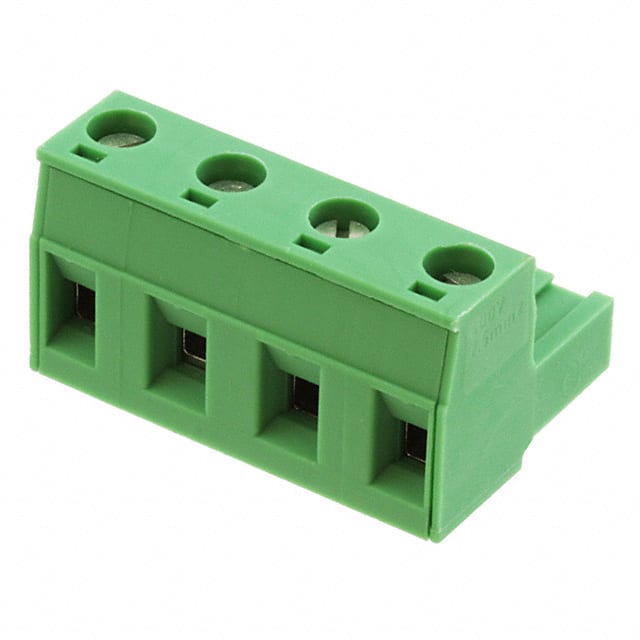

The Phoenix Contact 1767025 is a 4-position terminal block plug designed for reliable wire-to-board connections in industrial control and automation systems. It features a 7.62mm pitch and accepts wire gauges from 0.2 to 2.5 mm², with a current rating of 15A and voltage rating of 300V.
The plug uses a screw rising cage clamp termination style, ensuring secure and vibration-resistant wire connections. It is designed for free hanging (in-line) mounting with a 180° wire entry angle, making it suitable for panel or cabinet wiring where space is constrained. The green housing includes retention latches on the non-wire side for added mechanical stability when mated with a header.
Contact mating surfaces are finished with tin for reliable conductivity and corrosion resistance. This component is RoHS3 compliant and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions during handling and soldering.
It has 4 positions.
The pitch is 7.62mm (0.300 inches).
It is rated for 15A current and 300V voltage.
It uses screw rising cage clamp termination.
It is designed for free hanging (in-line) mounting.
It accepts wire gauges from 0.2 to 2.5 mm².
