| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Country of Origin | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

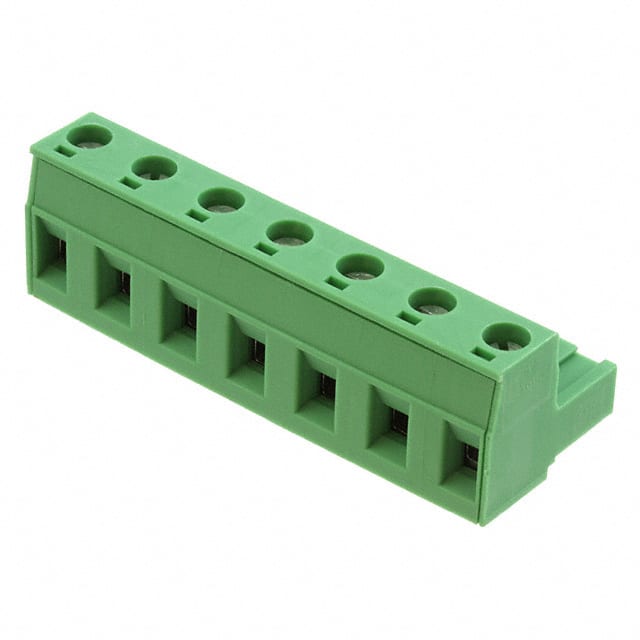

The 1766932 is a 7-position terminal block plug from Phoenix Contact, part of the GMSTB 2,5/..-ST series. It features female sockets with a 7.5 mm pitch, designed for free hanging (in-line) mounting. The screw connection with rising cage clamp ensures secure wire termination. The plug is rated for 300 V and 15 A (or 12 A nominal from datasheet). It accepts wire sizes from 0.2 to 2.5 mm² (24 to 12 AWG). The insulating material is PA with flammability class V0. The green color housing includes retention latches for secure mating. This plug is suitable for industrial applications requiring reliable connections. The plug wire entry is 180°, providing straight-in wiring. Electrical ratings also include a nominal voltage of 400 V, rated surge voltage up to 6 kV, and UL/CUL ratings for Group B (250 V/12 A) and Group D (300 V/10 A). The screw thread is M3 with tightening torque 0.5-0.6 Nm. Stripping length is 7 mm. Country of origin is Germany.
7 positions.
7.5 mm.
The DB rating is 15 A, but the datasheet specifies a nominal current of 12 A.
300 V, with rated voltage (III/2) 630 V and (II/2) 1000 V.
Free hanging (in-line).
0.2 to 2.5 mm² (24 to 12 AWG) solid or stranded.
Screw - Rising Cage Clamp.
