| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

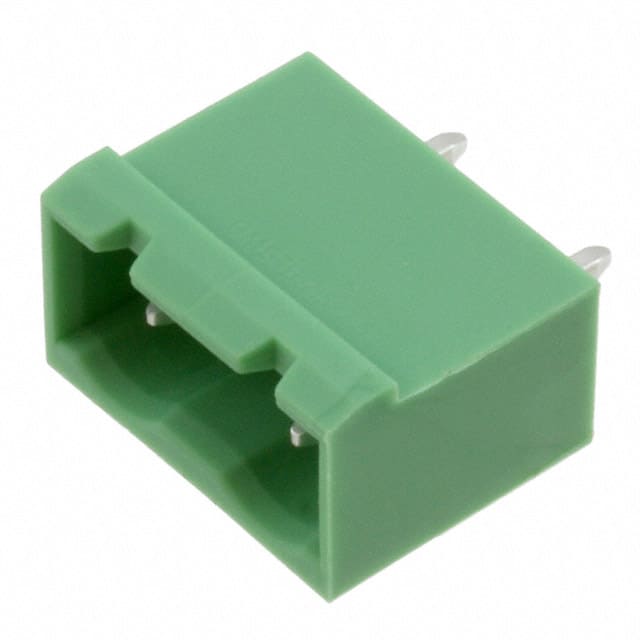

The Phoenix Contact 1766770 is a 2-position terminal block header designed for reliable wire-to-board connections. It features a 7.62mm pitch and a vertical orientation, making it suitable for compact PCB layouts. The header is shrouded on four sides, providing enhanced protection and polarization for secure mating with compatible plugs.
Rated at 15A and 300V, this component supports moderate power applications. It uses through-hole mounting with solder termination for robust mechanical attachment. The green housing and tin-plated contacts offer standard corrosion resistance.
This header is commonly used in industrial control, power distribution, and building automation systems where a secure and polarized connection is required.
It has 2 positions.
The pitch is 7.62mm (0.300 inches).
The current rating is 15A.
The voltage rating is 300V.
It uses through-hole mounting.
