1766709 Phoenix Contact 1766709 is a 6-position shrouded header with 7.5mm pitch. It features a 12A current rating, 630V voltage rating, and through-hole termination.
Mfr Part #:

1766709

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1766709 is a 6-position shrouded header with 7.5mm pitch. It features a 12A current rating, 630V voltage rating, and through-hole termination.
✓ Total Stock: 90 pcs

1766709 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1766709 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1766709 Description

Short technical summary and product information.

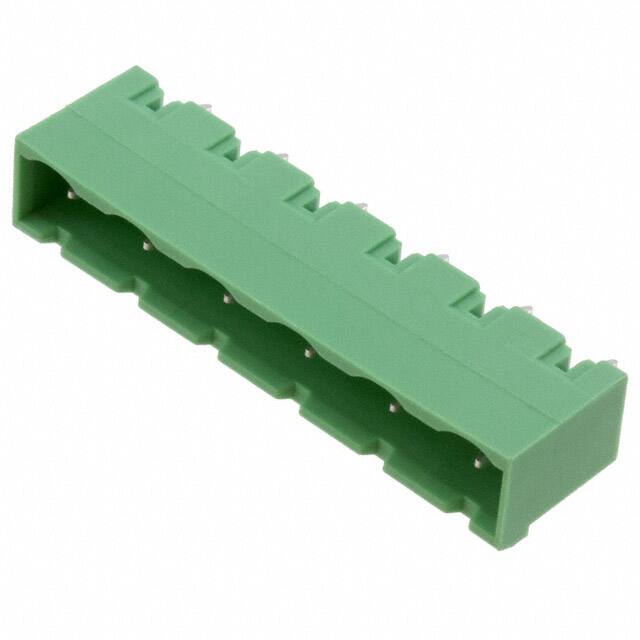

The Phoenix Contact 1766709 (GMSTBVA 2,5/6-G) is a 6-position, 1-level shrouded header designed for printed circuit board applications. It features a vertical orientation with through-hole solder pins, making it suitable for plug-in connections with a 7.5mm pitch.



This header is rated for a nominal current of 12A and a nominal voltage of 400V (630V for rated voltage III/2). It meets UL ratings of 250V/12A (Group B) and 300V/10A (Group D). The insulating material is PA with a flammability rating of V0, and contact mating finish is tin.



The header measures 8.6mm in length with a dimension a of 37.5mm (for 6 positions). Pin dimensions are 1x1mm with a hole diameter of 1.4mm. The green color indicates the standard color for Phoenix Contact headers. The product is manufactured in Germany (custom tariff number 85366990).



This header is ideal for use in industrial control systems, power distribution, and building automation where reliable pluggable connections are required. The 4-sided shrouding provides protection against accidental contact and ensures proper mating with compatible plugs.

1766709 Quick Information

Product Type: Terminal Block Header
Series: GMSTBVA 2,5/..-G
Canonical Name: Phoenix Contact GMSTBVA 2,5/6-G Header, Male Pins, Shrouded (4 Side), 6 Positions, 7.5mm Pitch, Through Hole
Subcategory: Headers

1766709 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1766709 Features

  • 6 positions with 7.5mm pitch.
  • Rated for 12A current and 630V voltage.
  • Through-hole mounting with vertical orientation.
  • Shrouded with 4-side protection.
  • V0 flammability rated PA insulator.

1766709 Applications

  • Used in PCB-to-wire connection applications.
  • Suitable for industrial control panels.
  • Ideal for power distribution blocks.
  • Common in automation and machinery.

1766709 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1766709 header have?

6 positions.

What is the pitch of this header?

7.5 mm.

What is the current rating of the Phoenix Contact 1766709?

12 A nominal current.

What is the voltage rating?

Rated voltage (III/2) is 630 V, nominal voltage is 400 V.

What mounting type does this header use?

Through Hole with solder termination.

What is the flammability rating of the insulating material?

V0 per UL 94.

What is the country of origin?

Germany.
