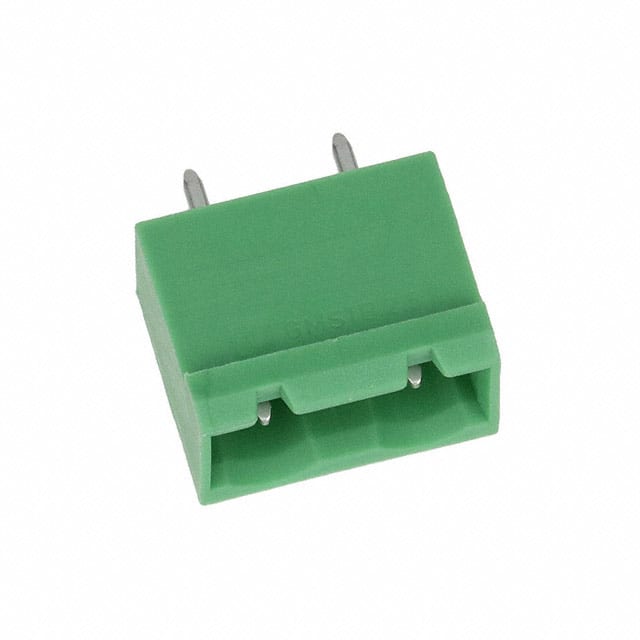

1766660 2-position terminal block header, male pins, shrouded, 7.5mm pitch, 12A, 630V, through hole solder pins, green.
Mfr Part #:

1766660

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
2-position terminal block header, male pins, shrouded, 7.5mm pitch, 12A, 630V, through hole solder pins, green.
✓ Total Stock: 2,816 pcs

1766660 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2,816 pcs
On Request
2816 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1766660 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Standards
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

1766660 Description

Short technical summary and product information.

The Phoenix Contact 1766660 is a 2-position terminal block header from the GMSTBVA 2,5/..-G series. It features a 7.5mm pitch and is designed for through hole mounting with vertical orientation. The header is shrouded on four sides for stable plug-in connections.



Electrical ratings include a nominal current of 12A and rated voltage of 630V (III/2) with a 6kV rated surge voltage. The insulating material is green PA (Polyamide) with a UL 94 V0 flammability rating. Contact mating surface is tin.



Dimensions: length 8.6mm, width 14.95mm, constructional height 12mm. Solder pins are 3.9mm long with 1x1mm pin dimensions, requiring a 1.4mm hole diameter. Weight per piece is 1.51g. The product is supplied in a standard package of 1 piece.



Compliance includes EN-VDE, CSA, UL Recognized, cUL Recognized, IECEE CB Scheme, and EAC. The header is suitable for PCB applications requiring higher voltage ratings and vertical multi-row arrangements.

1766660 Quick Information

Product Type: Terminal Block Header
Series: GMSTBVA 2,5/..-G
Canonical Name: Phoenix Contact GMSTBVA 2,5/2-G 2 Position 7.5mm Pitch Header, Through Hole, Green
Subcategory: Terminal Block Headers

1766660 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1766660 Features

  • 2 positions with 7.5mm pitch.
  • Rated for 12A and 630V.
  • Through hole solder termination.
  • Green PA insulating material with UL 94 V0.
  • Shrouded header for stable connections.

1766660 Applications

  • Used in PCB power distribution.
  • Suitable for industrial control systems.
  • Ideal for multi-row PCB layouts.
  • Compatible with GMSTBVA series connectors.
  • Vertical connection saves board space.

1766660 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

2 positions.

What is the pitch of this header?

7.5 mm.

What is the current rating?

12 A nominal current, 12 A maximum load current.

What is the voltage rating?

630 V (III/2), 400 V (III/3), 630 V (II/2).

What is the mounting type?

Through hole with wave soldering.

What color is the header?

Green.

What standards does it comply with?

EN-VDE, CSA, UL Recognized, VDE Gutachten, cUL Recognized, IECEE CB Scheme, EAC, cULus Recognized.
