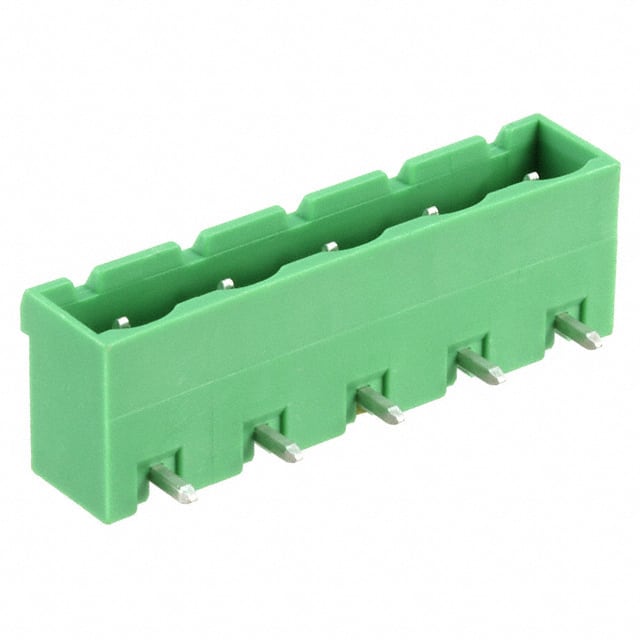

1766262 This is a 5-position, 7.62mm pitch, right angle terminal block header from Phoenix Contact. It features a shrouded design, through-hole mounting, and tin-plated contacts.
Mfr Part #:

1766262

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 5-position, 7.62mm pitch, right angle terminal block header from Phoenix Contact. It features a shrouded design, through-hole mounting, and tin-plated contacts.
✓ Total Stock: 100 pcs

1766262 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1766262 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1766262 Description

Short technical summary and product information.

The Phoenix Contact 1766262 is a 5-position terminal block header with a 7.62mm pitch and a right angle orientation. It is a shrouded header, providing alignment and protection for mating connectors. The header is rated for 300V and 15A, suitable for power and signal applications. Mounting is through hole with solder termination. The contacts have a tin finish. The housing is green. This part is RoHS compliant (unverified) and has MSL 1 (unlimited floor life).

1766262 Quick Information

Product Type: Terminal Block Header
Canonical Name: Header, Male Pins, Shrouded (4 Side), 5 Position, 7.62mm Pitch, Right Angle, Through Hole
Subcategory: Shrouded Header

1766262 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1766262 Features

  • 5 positions with 7.62mm pitch.
  • Right angle orientation for compact layouts.
  • Through-hole mounting for robust attachment.
  • Rated for 300V and 15A.
  • Shrouded design with tin-plated contacts.

1766262 Applications

  • 5-position terminal block header for PCB mounting
  • Right-angle shrouded header for wire-to-board connections
  • 7.62mm pitch suitable for high-power industrial wiring
  • Rated 300V/15A for power distribution applications
  • Through-hole solder termination for reliable assembly

1766262 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the header have?

5 positions.

What is the pitch of this header?

7.62mm.

What is the current rating?

15A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What is the header orientation?

Right angle (90°).

What is the contact mating finish?

Tin.
