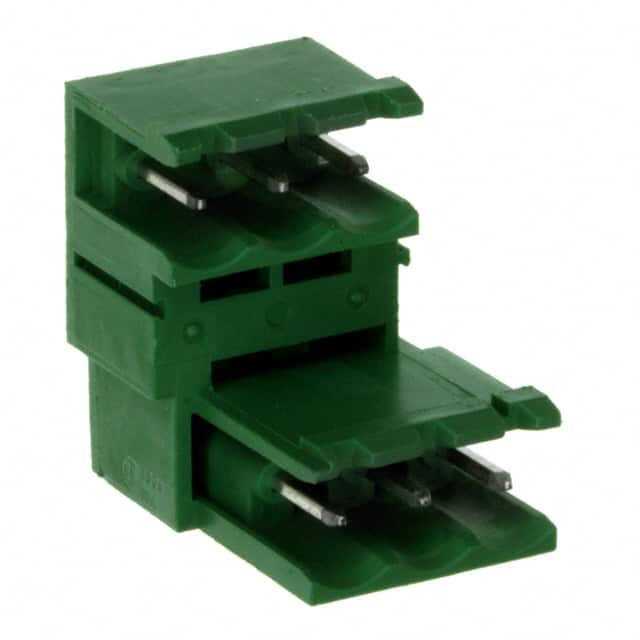

1763087 Terminal block header, male pins, shrouded (2 side), with 6 positions arranged in 2 levels of 3 positions per level. Vertical orientation, 5.08mm pitch, through hole solder termination.
Mfr Part #:

1763087

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header, male pins, shrouded (2 side), with 6 positions arranged in 2 levels of 3 positions per level. Vertical orientation, 5.08mm pitch, through hole solder termination.
✓ Total Stock: 50 pcs

1763087 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1763087 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Conflict Minerals
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1763087 Description

Short technical summary and product information.

The Phoenix Contact 1763087 is a terminal block header designed for use in wire-to-board connector applications. This header features male pins in a shrouded (2 side) configuration, providing physical protection and polarization during mating. It offers 6 positions arranged in 2 levels with 3 positions per level, allowing for compact, high-density connections.



The header is oriented vertically and has a pitch of 5.08mm, which is a common spacing for industrial control and power distribution systems. Electrical ratings are 300V and 12A, suitable for moderate power signal and power applications. The contact mating finish is tin, providing good solderability and corrosion resistance.



Mounting is through hole with solder termination, ensuring a robust mechanical and electrical connection to the printed circuit board. The housing is green, a typical color for Phoenix Contact terminal blocks, aiding in visual identification. This part is RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited floor life), simplifying handling and storage requirements.

1763087 Quick Information

Product Type: Terminal Block Header
Series: 1763087
Canonical Name: 1763087 — Terminal Block Header, 6 Positions, 2 Levels, 3 Positions per Level, 5.08mm Pitch, Through Hole, Vertical
Subcategory: Terminal Block Header

1763087 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1763087 Features

  • 6 positions in 2 levels of 3.
  • 5.08mm pitch, vertical orientation.
  • Through hole solder termination.
  • Rated 300V and 12A.
  • Shrouded 2 side header design.

1763087 Applications

  • Industrial control panel wiring.
  • Power distribution on PCBs.
  • Sensor and actuator connections.
  • Building automation systems.

1763087 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1763087 terminal block header have?

This header has 6 positions, arranged in 2 levels with 3 positions per level.

What is the pitch of the 1763087?

The pitch is 5.08mm (0.200 inches).

What is the voltage and current rating of the Phoenix Contact 1763087?

It is rated for 300V and 12A.

What mounting type does the 1763087 use?

It uses through hole mounting with solder termination.

What is the header orientation of part 1763087?

The header orientation is vertical.
