1762444 Phoenix Contact 1762444 is a 18-position, 2-level terminal block header with 5.08mm pitch, rated at 300V and 15A, through hole right angle mounting.
Mfr Part #:

1762444

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1762444 is a 18-position, 2-level terminal block header with 5.08mm pitch, rated at 300V and 15A, through hole right angle mounting.
✓ Total Stock: 38 pcs

1762444 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1762444 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1762444 Description

Short technical summary and product information.

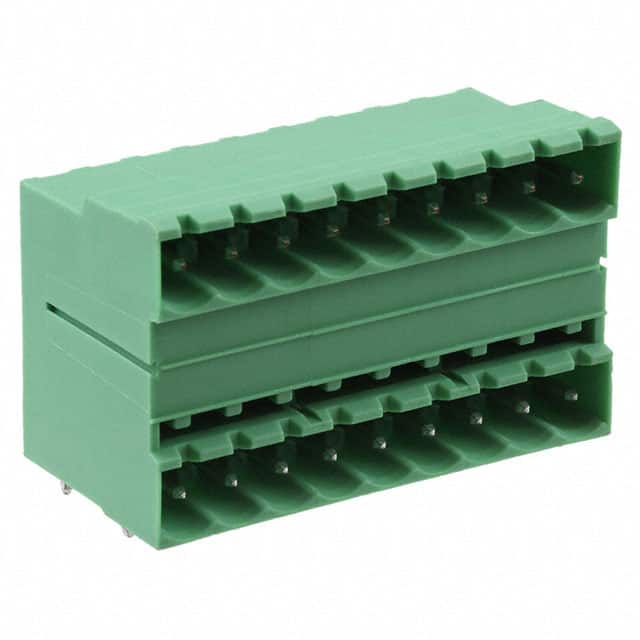

The Phoenix Contact 1762444 is a shrouded (4 side) right angle terminal block header designed for reliable wire-to-board connections in industrial control and automation systems.



This header features 18 positions arranged in 2 levels of 9 positions each, on a 5.08mm pitch. It is rated for 300V and 15A, making it suitable for moderate power distribution and signal routing. The contact mating finish is tin.



The component uses through hole mounting with solder termination, providing a robust mechanical attachment to the PCB. The green housing color is standard for Phoenix Contact terminal block products.

1762444 Quick Information

Product Type: Terminal Block Header
Series: MSTB 2,5/ 9-ST-5,08
Canonical Name: Phoenix Contact 1762444 Terminal Block Header, 18 Position, 5.08mm Pitch
Subcategory: Terminal Block Header

1762444 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1762444 Features

  • 18 positions in 2 levels of 9.
  • 5.08mm pitch right angle header.
  • Rated for 300V and 15A.
  • Through hole solder termination.
  • Tin contact mating finish.

1762444 Applications

  • Ideal for PLC and I/O module connections.
  • Used in industrial control panel wiring.
  • Suitable for power distribution boards.
  • Common in building automation systems.

1762444 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does the 1762444 have?

It has 18 positions arranged in 2 levels of 9 positions per level.

What is the pitch of this terminal block header?

The pitch is 5.08mm.

What is the voltage and current rating?

Rated for 300V and 15A.

What is the mounting style?

Through hole mounting with right angle orientation.
