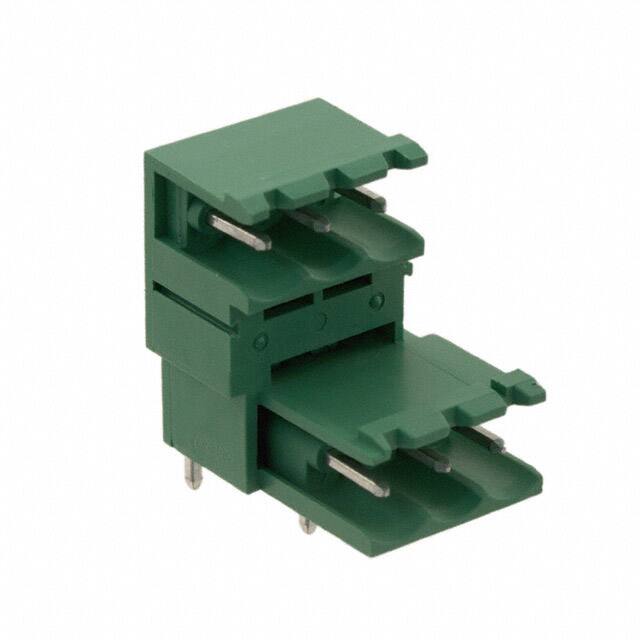

1762075 Phoenix Contact 1762075 is a 6-position, 5.08mm pitch, right angle, through-hole terminal block header with shrouded male pins and tin contacts.
Mfr Part #:

1762075

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1762075 is a 6-position, 5.08mm pitch, right angle, through-hole terminal block header with shrouded male pins and tin contacts.
✓ Total Stock: 2 pcs

1762075 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1762075 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Header Orientation
Industrial Grade
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1762075 Description

Short technical summary and product information.

The Phoenix Contact 1762075 is a terminal block header designed for reliable wire-to-board connections in industrial control and automation systems. It features 6 positions arranged in 2 levels of 3 positions each, with a 5.08mm pitch. The header is oriented at a 90-degree right angle and mounts via through-hole solder termination.



This shrouded header (2-sided) provides mechanical protection for the male pins and features side interlocking for secure multi-position assembly. The green housing and tin-plated contacts offer durability and corrosion resistance. Rated for 300V and 10A, it is suitable for power distribution and signal routing in panel wiring and PCB applications.

1762075 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1762075 Terminal Block Header, 6 Positions, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1762075 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1762075 Features

  • 6 positions in 2 levels of 3.
  • 5.08mm pitch for compact wiring.
  • Right angle orientation for space saving.
  • Through hole solder termination.
  • Side interlocking for multi-unit assembly.

1762075 Applications

  • Industrial control panel wiring.
  • Power distribution in automation systems.
  • Signal routing in PLC I/O modules.
  • PCB-to-wire connections in machinery.

1762075 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1762075 have?

The 1762075 has 6 positions arranged in 2 levels of 3 positions per level.

What is the pitch of the 1762075 terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating of the 1762075?

The current rating is 10A and the voltage rating is 300V.

What mounting type does the 1762075 use?

It uses through-hole mounting with solder termination.

What is the orientation of the 1762075 header?

The header is oriented at 90 degrees (right angle).
