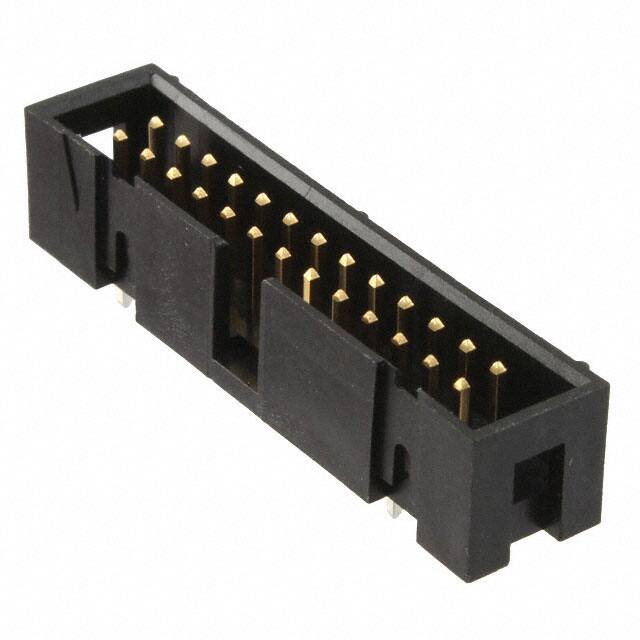

1761681-9 1761681-9 is a 26-position, 2-row, shrouded header from TE Connectivity. It features 2.54mm pitch, through hole mounting, and tin-plated phosphor bronze contacts.
Mfr Part #:

1761681-9

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
1761681-9 is a 26-position, 2-row, shrouded header from TE Connectivity. It features 2.54mm pitch, through hole mounting, and tin-plated phosphor bronze contacts.
✓ Total Stock: 500 pcs
$ Price Range: $2.06 - $3.51

1761681-9 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1761681-9 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

1761681-9 Description

Short technical summary and product information.

The TE Connectivity 1761681-9 is a 26-position, 2-row, shrouded header connector designed for board-to-cable/wire applications. It features a 2.54mm pitch and 2.54mm row spacing, with all positions loaded. The connector is shrouded with a 4-wall design and includes a keying slot for alignment. Contacts are made of phosphor bronze with a tin finish, rated for 1A per contact and 250VAC. The insulation is black PCT UL94 V-0 rated material. Operating temperature range is -65°C to 105°C. Mounting is through hole with solder termination. The push-pull fastening mechanism provides secure mating.

1761681-9 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1761681-9 Header, Male Pins, 26 Positions, 2.54mm Pitch, Through Hole
Subcategory: Male Pins

1761681-9 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1761681-9 Estimated Pricing

Qty Low High
1+ $3.51 $3.51
10+ $3.02 $3.02
50+ $2.73 $2.73
100+ $2.58 $2.58
250+ $2.36 $2.36
500+ $2.27 $2.27
1,000+ $2.12 $2.12
2,500+ $2.06 $2.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

1761681-9 Features

  • Shrouded 4-wall design for pin protection.
  • 26 positions with 2.54mm pitch.
  • Tin-plated phosphor bronze contacts.
  • Rated for 1A per contact at 250VAC.
  • Through hole solder termination.

1761681-9 Applications

  • Board-to-cable/wire interconnection.
  • General purpose rectangular connector applications.
  • Suitable for industrial control panels.
  • Used in consumer electronics wiring.

1761681-9 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1761681-9 have?

26 positions arranged in 2 rows.

What is the pitch of this header?

2.54mm (0.100") pitch between contacts.

What is the current rating per contact?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole with solder termination.

Is the header shrouded?

Yes, it has a shrouded 4-wall design.

What is the operating temperature range?

-65°C to 105°C.
