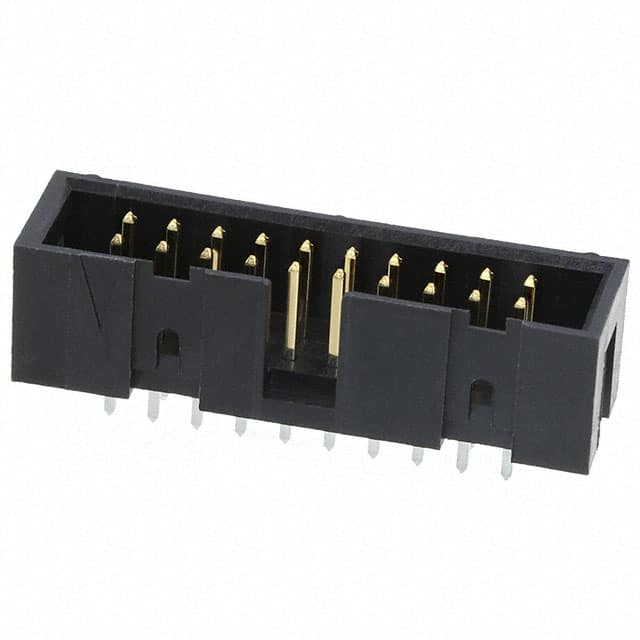

The TE Connectivity 1761681-7 is a 20-position, 2-row shrouded header connector with a 2.54mm (0.100") pitch and row spacing. It features male pins with phosphor bronze contacts plated with 0.38µm tin. The insulation is made of polycyclohexylenedimethylene terephthalate (PCT) with a black color and a height of 8.89mm.
This header uses a push-pull fastening mechanism and is fully shrouded with 4 walls for protection. It is designed for board-to-cable/wire applications. The electrical ratings are 1A per contact and 250VAC, with an operating temperature range from -65°C to 105°C. The insulation material meets UL94 V-0 flammability rating.
Mounting is through-hole with solder termination, providing a secure connection. A keying slot feature ensures proper orientation during mating.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.74 | $2.74 |
| 10+ | $2.25 | $2.25 |
| 25+ | $2.00 | $2.00 |
| 80+ | $1.90 | $1.90 |
| 240+ | $1.77 | $1.77 |
| 560+ | $1.73 | $1.73 |
| 1,040+ | $1.68 | $1.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions arranged in 2 rows.
2.54mm (0.100 inch) pitch.
1A per contact.
250VAC.
Through hole solder termination.
-65°C to 105°C.
Phosphor bronze with tin plating (0.38µm).
