| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,750 pcs
|
1750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

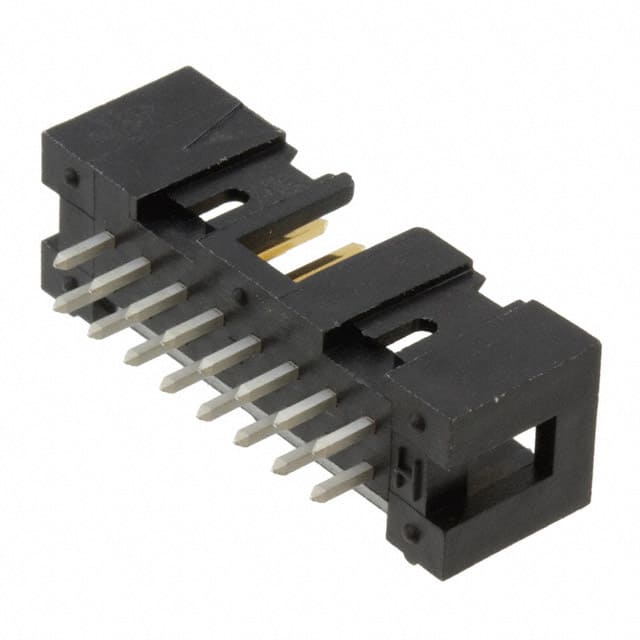

The TE Connectivity 1761681-6 is a 16-position, 2-row, 2.54mm pitch, shrouded header designed for board-to-cable/wire applications. It features a through-hole mounting type with solder termination and a push-pull fastening mechanism. The header is constructed with a black PCT insulator and phosphor bronze contacts with tin plating (0.38µm). The insulation height is 8.89mm and contact length is 6.10mm. Electrical ratings include 1A per contact and 250VAC. The operating temperature range is -65°C to 105°C. The header has a keying slot feature for proper alignment. It is RoHS3 compliant and has a flammability rating of UL94 V-0. This component is suitable for various industrial and consumer applications requiring reliable connections.
16 positions in 2 rows.
2.54mm (0.100 inches).
1A per contact.
250VAC.
Through hole.
Tin plating, 0.38µm thickness.
-65°C to 105°C.
