| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

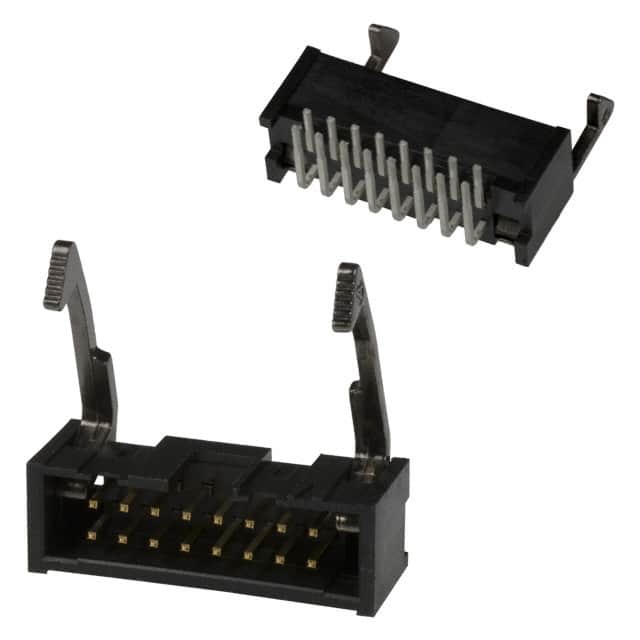

The TE Connectivity 1761607-6 is a 16-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 2.54mm pitch and row spacing, with a through hole right angle mounting style for compact PCB layouts.
The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. The insulation is black polybutylene terephthalate (PBT) rated UL94 V-0 for flammability. Contacts are phosphor bronze with 30µin tin finish, rated for 1A per contact and 250VAC. A keying slot is included for polarization.
Operating temperature range is -65°C to 105°C. All 16 positions are loaded with square male pins. This connector is suitable for wire-to-board interconnect applications requiring a reliable locking mechanism.
It has 16 positions in 2 rows, all loaded.
The pitch is 2.54mm (0.100") and the row spacing is also 2.54mm.
It is rated for 1A per contact and 250VAC.
Through hole, right angle mounting.
Yes, it is a shrouded 4-wall header with latch lock/eject hooks.
-65°C to 105°C.
Phosphor bronze contacts with 30µin tin finish.
