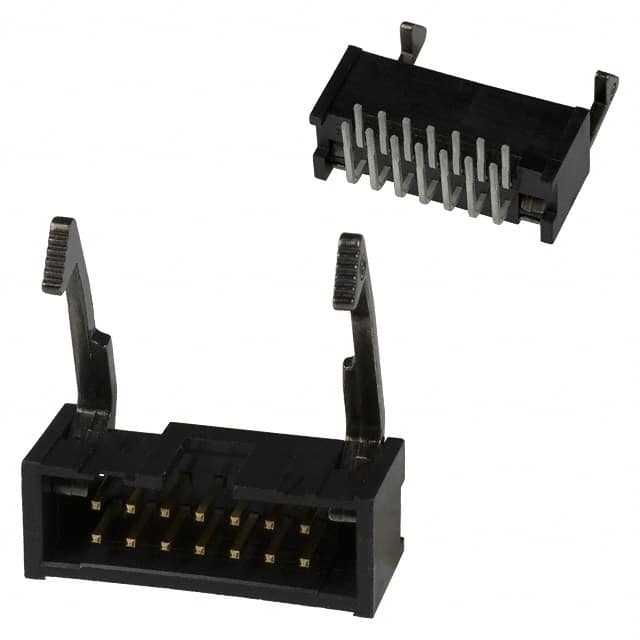

1761607-5 TE Connectivity 1761607-5 is a 14-position, 2.54mm pitch right-angle shrouded header with male pins. It features a latch lock/eject hook fastening and keying slot.
Mfr Part #:

1761607-5

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1761607-5 is a 14-position, 2.54mm pitch right-angle shrouded header with male pins. It features a latch lock/eject hook fastening and keying slot.
✓ Total Stock: 239 pcs
$ Price Range: $4.66 - $7.73

1761607-5 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
239 pcs
On Request
239 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1761607-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

1761607-5 Description

Short technical summary and product information.

This is a 14-position, 2-row header connector from TE Connectivity with a pitch of 2.54mm and row spacing of 2.54mm. It is a male pin header with a shrouded 4-wall design, suitable for board-to-cable/wire applications.



The connector features a right-angle through-hole mounting with solder termination. It has a latch lock/eject hook fastening type and includes a keying slot for alignment. The insulation is black PBT with UL94 V-0 flammability rating.



Electrical ratings are 1A per contact and 250VAC. Operating temperature range is -65°C to 105°C. Contacts are phosphor bronze with tin finish, 30µin thickness.

1761607-5 Quick Information

Product Type: Header, Male Pins
Canonical Name: TE Connectivity 1761607-5, 14 Position 2.54mm Pitch Right Angle Shrouded Header
Subcategory: Shrouded Right Angle Header

1761607-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1761607-5 Estimated Pricing

Qty Low High
1+ $7.73 $7.73
10+ $6.26 $6.26
20+ $6.25 $6.25
100+ $5.58 $5.58
500+ $4.98 $4.98
1,000+ $4.96 $4.96
2,500+ $4.66 $4.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

1761607-5 Features

  • 14 positions with 2.54mm pitch spacing.
  • Right-angle through-hole mounting style.
  • Shrouded 4-wall design with latch lock.
  • Rated for 1A per contact at 250VAC.
  • Operating temperature range -65°C to 105°C.

1761607-5 Applications

  • Board-to-cable wire harness connections.
  • Industrial control and automation systems.
  • Consumer electronics requiring secure locking.
  • Data communication equipment interconnects.

1761607-5 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1761607-5 header have?

14 positions, all loaded.

What is the pitch of this header?

2.54mm (0.100 inches).

What is the current rating per contact?

1A per contact.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole, right angle with solder termination.

What is the operating temperature range?

-65°C to 105°C.

What fastening type does this header use?

Latch lock/eject hooks, long.
