| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
608 pcs
|
608 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
437 pcs
|
437 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

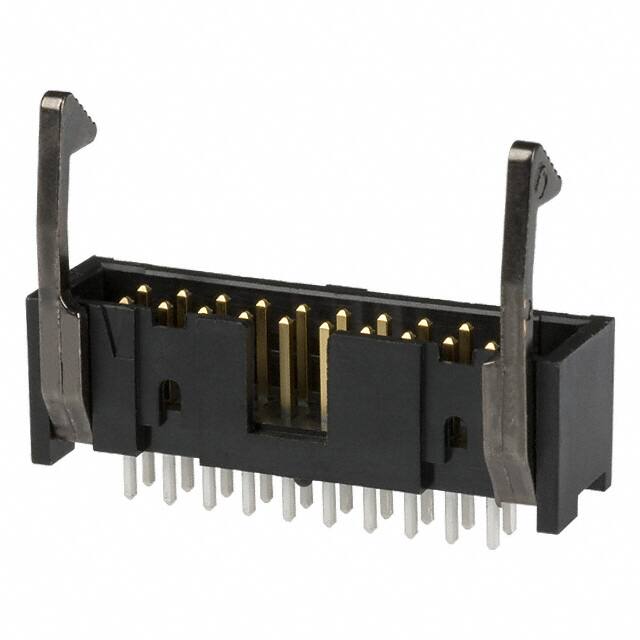

The TE Connectivity 1761606-7 is a 20-position, 2-row shrouded header with a 2.54mm pitch, designed for board-to-cable/wire applications. It features a through-hole mounting style with solder termination, providing a reliable connection.
The connector is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. The insulation is made of black Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, and the contacts are phosphor bronze with a tin finish (0.76µm).
Rated at 1A per contact and 250VAC, this header supports an operating temperature range of -65°C to 105°C. It includes a keying slot feature to prevent misalignment during mating.
It has 20 positions in 2 rows.
The pitch is 2.54mm (0.100 inches).
The header is rated at 1A per contact and 250VAC.
It is a through hole mount component with solder termination.
Yes, it is shrouded with a 4-wall design and has a keying slot to prevent misalignment.
The operating temperature range is -65°C to 105°C.
