| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
855 pcs
|
855 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

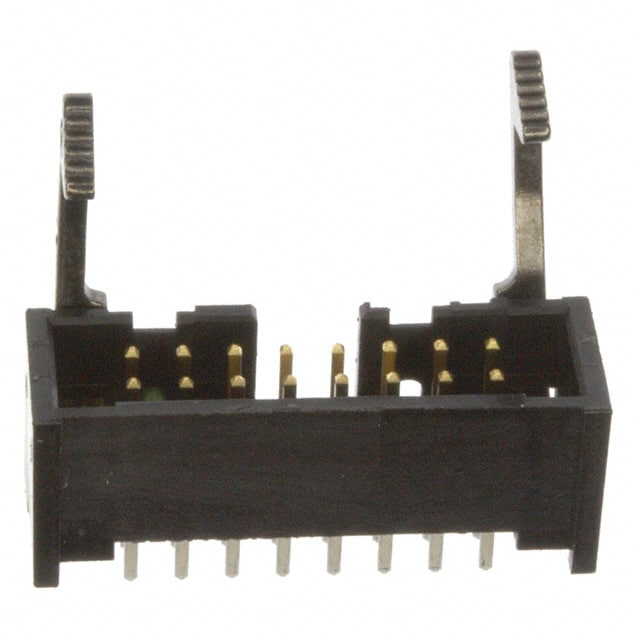

The TE Connectivity 1761606-6 is a rectangular header connector designed for board-to-cable/wire applications. It features 16 positions arranged in 2 rows with a standard 2.54mm (0.100") pitch and row spacing. The header is shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating. Contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and have a square shape. The contact length is 6.02mm and the insulation height is 10.26mm. The housing is made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The connector includes a keying slot for polarization. Electrical ratings are 1A per contact and 250VAC. The operating temperature range is -65°C to 105°C. Mounting is through-hole with solder termination. This header is suitable for various industrial and commercial applications requiring reliable interconnection.
It has 16 positions arranged in 2 rows.
The pitch is 2.54mm (0.100 inches).
The current rating is 1A per contact.
The voltage rating is 250VAC.
It is a through-hole mounting type with solder termination.
The operating temperature range is -65°C to 105°C.
Contacts are made of phosphor bronze with a tin finish of 30.0µin (0.76µm) thickness.
