| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | 1730 | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:37:22 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

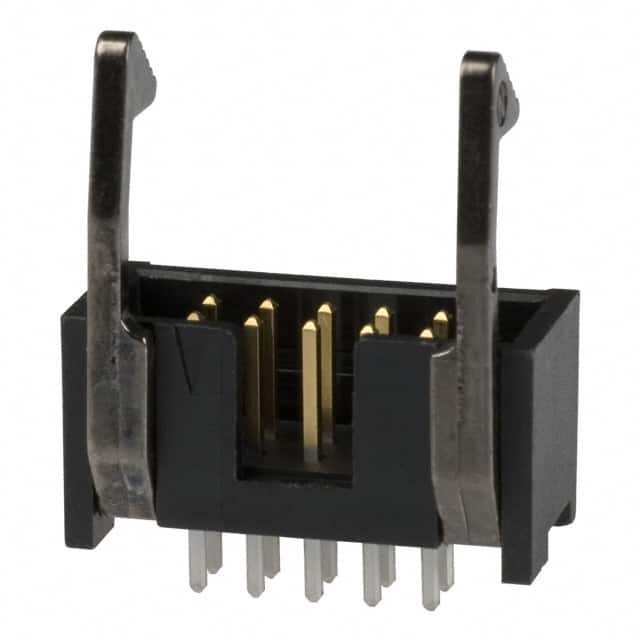

The TE Connectivity 1761606-3 is a 10 position, 2-row, shrouded header designed for board-to-cable/wire applications. It features a 2.54mm (0.100") pitch and 0.100" row spacing, making it suitable for standard ribbon cable interfaces. The header is fully shrouded with a 4-wall design and includes long latch lock/eject hooks for secure mating.
Electrical ratings are 1A per contact and 250VAC. The contacts are made of phosphor bronze with a tin finish (30.0µin thickness) and have a square contact shape. The insulation is black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The operating temperature range is -65°C to 105°C.
This header is through hole mounted with solder termination. It includes a keying slot for polarization. The contact length is 6.02mm and the insulation height is 10.26mm. All 10 positions are loaded.
The pitch is 2.54mm (0.100").
It has 10 positions in 2 rows.
The current rating is 1A per contact.
The voltage rating is 250VAC.
Through hole mounting with solder termination.
-65°C to 105°C.
RoHS3 compliant (unverified).
