1761603-3 by TE Connectivity AMP Connectors

1761603-3 by TE Connectivity AMP Connectors

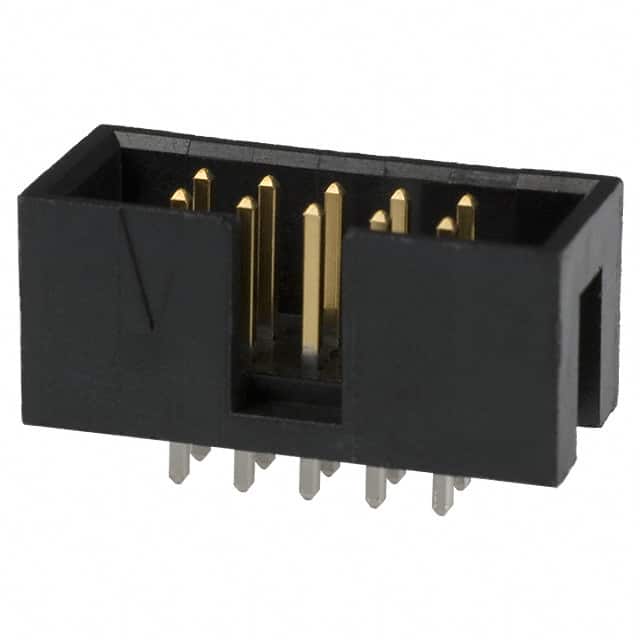

CONN HEADER VERT 10POS 2.54MM

DistiPart #
Manufacturer Name TE Connectivity AMP Connectors
Manufacturer Part #

1761603-3

Manufacturer Standard Lead Time 12 Weeks
EDA/CAD Models
Are you a distributor of this part? Register now to receive RFQ from buyers.
Download Datasheet
Other Documents
In Stock: 67 *Can dispatch immediately
Unit Price
Factory Stock: 87,99,542
Factory Lead time 12 Weeks
Minimum Order Quantity: 1

Specifications of 1761603-3

Product Attribute
Attribute Value
Select Attribute
Category
Headers, Male Pins
Manufacturer
TE Connectivity AMP Connectors
Connector Type
Header
Contact Finish Thickness
30.0µin (0.76µm)
Contact Finish
Tin
Contact Length
0.102" (2.60mm)
Contact Material
Phosphor Bronze
Contact Shape
Square
Contact Type
Male Pin
Fastening Type
Push-Pull
Features
Keying Slot
Insulation Color
Black
Insulation Height
0.350" (8.89mm)
Insulation Material
Polybutylene Terephthalate (PBT)
Material Flammability Rating
UL94 V-0
Mounting Type
Through Hole
Number of Positions
10
Number of Positions Loaded
All
Number of Rows
2
Pitch
0.100" (2.54mm)
Shrouding
Shrouded - 4 Wall
Style
Board to Cable/Wire
Termination
Solder
Current Rating (Amps)
1A per Contact
Operating Temperature
-65°C ~ 105°C
Voltage Rating
250VAC
Row Spacing
0.100" (2.54mm)
View All Features
DistyParts - Get Multiple quotes in one request

Product Compliance of 1761603-3

Attributes Description
CNHTS 98765434567
USHTS 45678987654
TARIC 67898765567
ECCN 3A991

Documents of 1761603-3

Datasheet
  Datasheet

Environmental & Export Classifications of 1761603-3

Attributes Description
RoHS Status RoHS3 Compliant
Moisture Sensitivity Level (MSL) 1 Unlimited
REACH Status REACH Unaffected
ECCN 3A991
HTSUS 9876.21.0030

Additional Resources of 1761603-3

Attributes Description
Other Names RMCF 1/16S 0 R RMCF0402ZT0R00-ND RMCF1/16S0RTR-ND RMCF1/16S0RCT RMCF0402ZT0R00CT RMCF1/16S0RDKR-ND RMCF1/16S0RDKR
Standard Package 10,000
