| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

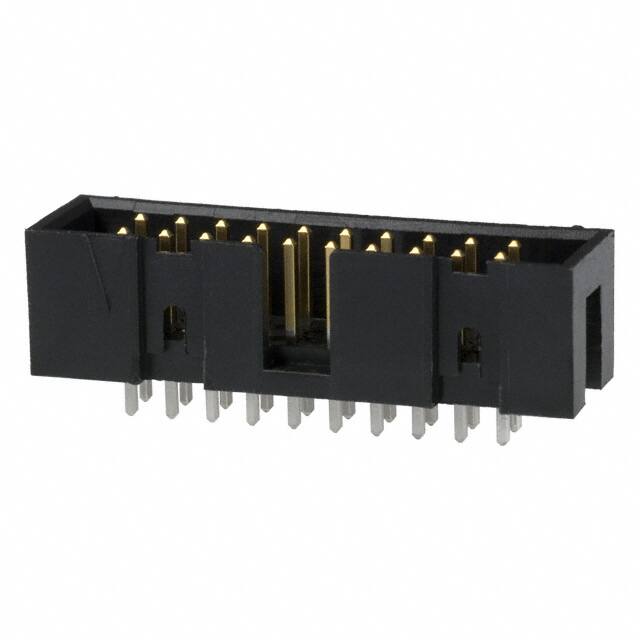

The TE Connectivity 1761602-7 is a 20-position, 2-row shrouded header with a 2.54mm pitch and row spacing. It features square male pins made of phosphor bronze with a tin contact finish of 15µin thickness. The connector is designed for board-to-cable/wire applications and utilizes a push-pull fastening mechanism.
This header has a 4-wall shrouded housing made of black polybutylene terephthalate (PBT) with a UL94 V-0 flammability rating. The insulation height is 8.89mm, and it includes a keying slot for correct alignment. Termination is through hole with solder connections.
Electrical ratings include 1A per contact with a voltage rating of 250VAC. The operating temperature range is -65°C to 105°C, making it suitable for a wide variety of environments. The contact length is 2.60mm.
20 positions arranged in 2 rows.
2.54mm (0.100").
1A per contact.
250VAC.
Through hole with solder termination.
-65°C to 105°C.
Tin with 15µin thickness.
