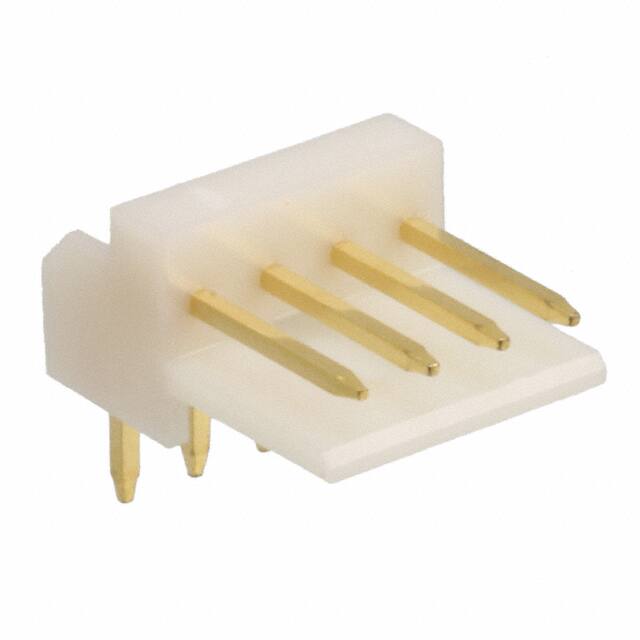

176153-4 TE Connectivity 176153-4 is a 4-position, single-row header with 2.50mm pitch, through hole right angle mounting, and latch holder fastening.
Mfr Part #:

176153-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 176153-4 is a 4-position, single-row header with 2.50mm pitch, through hole right angle mounting, and latch holder fastening.
✓ Total Stock: 9 pcs
$ Price Range: $1.98 - $3.48

176153-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
9 pcs
On Request
9 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

176153-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Length
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

176153-4 Description

Short technical summary and product information.

The TE Connectivity 176153-4 is a 4-position header connector designed for board-to-cable/wire applications. It features a single row of male pin contacts with a 2.50mm pitch, making it suitable for compact designs. The connector is through hole mounted with a right angle orientation, allowing for low-profile connections. It includes a latch holder for secure mating. The housing is made of polyamide (PA66/Nylon 6/6) with a natural color and a UL94 V-0 flammability rating. Contacts are brass with a square shape. The operating temperature range is -20°C to 85°C. Voltage rating is 250VAC and 350VDC, while current rating varies by wire gauge. The insulation height is 6.70mm and contact length is 7.49mm. This connector is commonly used in wire-to-board applications requiring a reliable locking mechanism.

176153-4 Quick Information

Product Type: Header, Male Pins
Series: EIS POST HDR ASSY
Canonical Name: TE Connectivity 176153-4 Header, Male Pins, 4 Position, 2.50mm Pitch, Through Hole, Right Angle
Subcategory: Male Pins

176153-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

176153-4 Estimated Pricing

Qty Low High
1+ $3.48 $3.48
10+ $3.17 $3.17
25+ $3.00 $3.00
100+ $2.79 $2.79
250+ $2.44 $2.44
500+ $2.37 $2.37
1,000+ $2.10 $2.10
2,500+ $1.98 $1.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

176153-4 Features

  • 4 positions in single row.
  • 2.50mm pitch for compact designs.
  • Through hole right angle mounting.
  • Latch holder for secure connection.
  • UL94 V-0 flammability rated housing.

176153-4 Applications

  • Used in wire-to-board connections.
  • Suitable for consumer electronics.
  • Ideal for industrial control modules.
  • Common in automotive interior applications.

176153-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

2.50mm.

What is the current rating?

Varies by wire gauge.

What is the voltage rating?

250VAC, 350VDC.

What is the mounting type?

Through Hole, Right Angle.

What is the operating temperature range?

-20°C to 85°C.

What is the insulation material?

Polyamide (PA66), Nylon 6/6.
