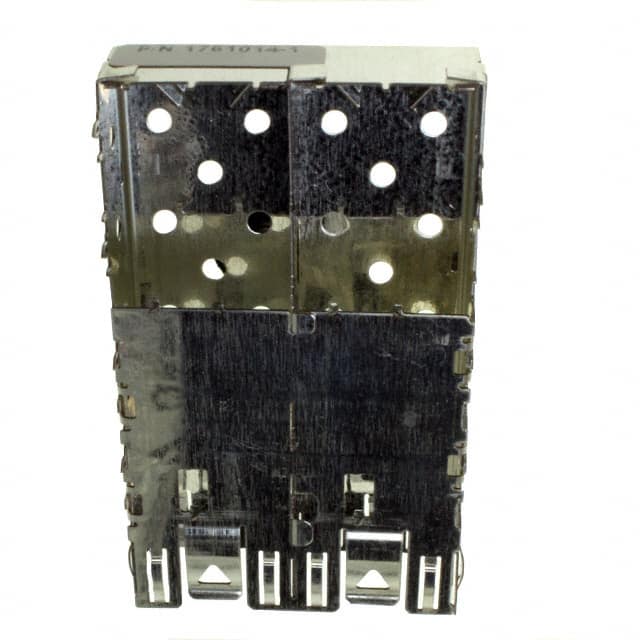

1761014-1 TE Connectivity 1761014-1 is a 1x2 ganged SFP cage assembly with press-fit termination and through hole right angle mounting. It features EMI shielding and is constructed from copper alloy with tin and nickel flash plating.
Mfr Part #:

1761014-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1761014-1 is a 1x2 ganged SFP cage assembly with press-fit termination and through hole right angle mounting. It features EMI shielding and is constructed from copper alloy with tin and nickel flash plating.
✓ Total Stock: 80 pcs

1761014-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
OTL Components ✓
Non-Authorised Inventory information
80 pcs
On Request
80 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1761014-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Style
Connector Type
Features
Material
Mounting Type
Number of Ports
Number of Rows
Plating
Termination
Termination Style
Weight
View Similar Products (0)

1761014-1 Description

Short technical summary and product information.

The TE Connectivity 1761014-1 is a 1x2 ganged SFP cage assembly designed for pluggable connector applications. It features a through hole right angle mounting style with press-fit termination for secure board attachment. The cage is EMI shielded to help reduce electromagnetic interference in high-speed data environments.



Constructed from copper alloy with tin plating per ASTM B545 and nickel flash per QQ-N-290, this cage provides reliable conductivity and corrosion resistance. The assembly supports two SFP ports in a single row configuration, making it suitable for space-constrained designs.



This component is intended for use in networking and telecommunications equipment where SFP modules are required. The press-fit termination eliminates the need for soldering, simplifying assembly and reducing manufacturing time.

1761014-1 Quick Information

Product Type: SFP Cage Assembly
Series: 1761014
Canonical Name: TE Connectivity 1761014-1 SFP Cage Assembly, 1x2, Press-Fit, Right Angle
Subcategory: Pluggable Connector Assemblies

1761014-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1761014-1 Features

  • 1x2 ganged SFP cage assembly.
  • Press-fit termination for secure mounting.
  • Through hole right angle mounting style.
  • EMI shielded for interference reduction.
  • Copper alloy with tin and nickel plating.

1761014-1 Applications

  • Used in networking switch and router designs.
  • Ideal for telecommunications equipment enclosures.
  • Supports SFP module integration in data centers.
  • Suitable for high-speed data transmission systems.

1761014-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the mounting type for this SFP cage?

Through hole, right angle.

What termination style does this part use?

Press-fit.

How many ports does this cage have?

2 ports (1x2 configuration).

Is this component EMI shielded?

Yes, it features EMI shielding.

What material is the cage made from?

Copper alloy with tin plating and nickel flash.
