| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

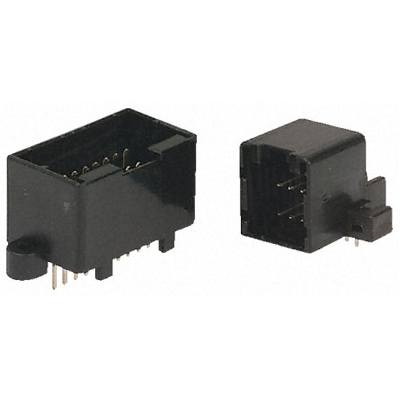

The TE Connectivity 175975-2 is a rectangular connector header for board-to-cable/wire applications. It provides 20 positions in two rows with a 2.50mm pitch, allowing compact wire-to-board connections. The header is configured for through-hole mounting at a right angle, which places the connection parallel to the PCB surface.
Electrical and mechanical features include brass rectangular tab contacts with a tin finish, and a black polybutylene terephthalate (PBT) insulator. The shrouded four-wall design and locking ramp retention provide protection and secure mating. A mounting flange adds mechanical stability when soldered to the board.
This connector is rated for an operating temperature range of -30°C to 105°C. The current rating depends on the wire gauge used, so designers should select the appropriate wire size for the expected load. The 5.20mm row spacing and 7.00mm mating contact length suit many standard wire-to-board receptacles.
Through-hole solder termination and a right-angle orientation make the 175975-2 suitable for space-constrained designs in industrial equipment, automotive electronics, and similar applications requiring reliable cable-to-board interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.42 | $1.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 20 positions arranged in 2 rows.
The pitch is 2.50mm (0.098 inches).
It is mounted through-hole at a right angle, terminated by soldering.
Contacts are brass with tin plating and a rectangular tab shape.
Yes, it has a fully shrouded 4-wall design for protection and alignment.
The operating temperature is -30°C to 105°C.
The row spacing is 5.20mm.
