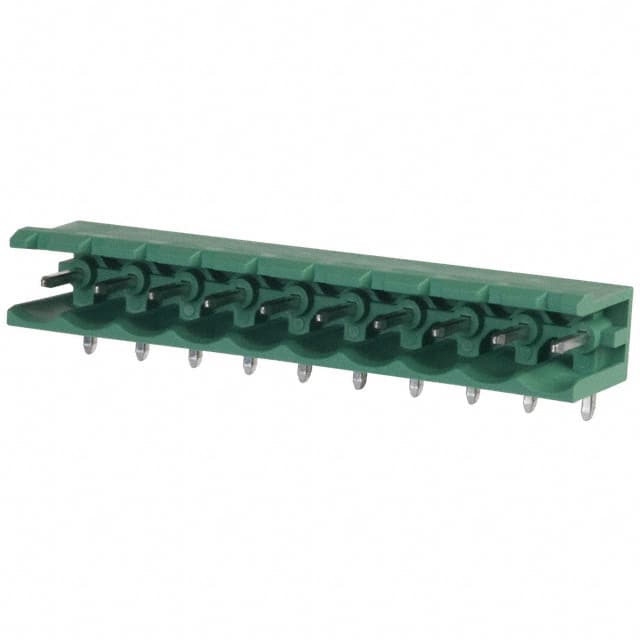

1759091 Phoenix Contact 1759091 is a 10-position, single level, 5.08mm pitch terminal block header. It features a through hole, right angle, shrouded male pin design and is rated for 300V and 15A.
Mfr Part #:

1759091

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1759091 is a 10-position, single level, 5.08mm pitch terminal block header. It features a through hole, right angle, shrouded male pin design and is rated for 300V and 15A.
✓ Total Stock: 1,511 pcs

1759091 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,480 pcs
On Request
1480 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
31 pcs
On Request
31 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759091 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1759091 Description

Short technical summary and product information.

The Phoenix Contact 1759091 is a 10-position terminal block header designed for reliable wire-to-board connections in industrial and commercial applications. This header features a 5.08mm pitch and a single level configuration, providing a compact and organized interconnection solution.



Electrical ratings include a voltage rating of 300V and a current rating of 15A, suitable for moderate power distribution. The contact mating finish is tin, ensuring good conductivity and solderability. The header is a male pin type with a 2-side shrouded design for improved pin protection and alignment.



Mechanically, the component features a right-angle (90°) orientation and is designed for through-hole mounting with solder termination. The housing is colored green, a common identifier for terminal block connectors. The lead spacing matches the 5.08mm pitch for consistent PCB layout.

1759091 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1759091 - Terminal Block Header, 10 Positions, 5.08mm Pitch, Through Hole, Right Angle, Green
Subcategory: Headers, Plugs and Sockets

1759091 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759091 Features

  • 10-position, single level terminal block header.
  • 5.08mm pitch for standard PCB spacing.
  • Through hole, right angle mounting orientation.
  • Rated for 300V and 15A operation.
  • Shrouded male pins with tin contact finish.

1759091 Applications

  • Suitable for industrial control panel wiring.
  • Used in power distribution and signal connections.
  • Ideal for PLC and I/O module interfaces.
  • Applicable in building automation and HVAC systems.

1759091 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 10 positions.

What is the pitch of the Phoenix Contact 1759091?

The pitch is 5.08mm (0.200 inches).

What is the voltage and current rating?

The voltage rating is 300V and the current rating is 15A.

What mounting type does this header use?

It uses through hole mounting with solder termination.

What color is the housing of the 1759091?

The housing is green.
