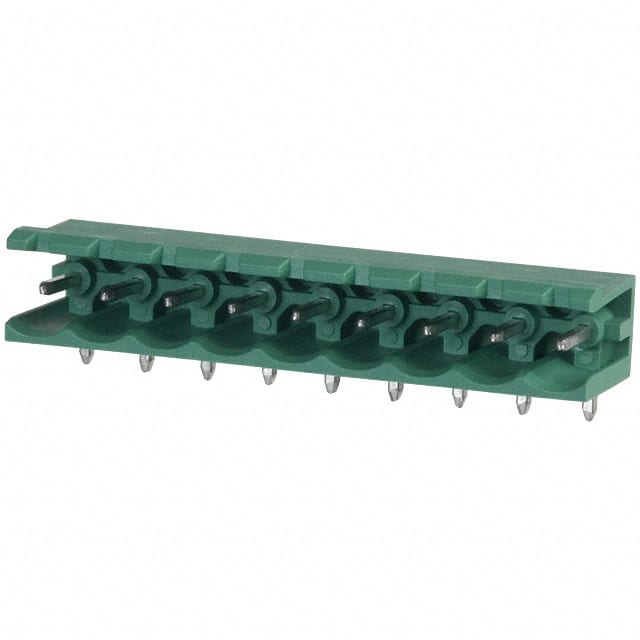

1759088 Phoenix Contact 1759088 is a 9-position, single-level, right angle header with 5.08mm pitch, rated 12A and 320V (III/2). Through hole solder termination, green PA insulating material, V0 flammability rating.
Mfr Part #:

1759088

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1759088 is a 9-position, single-level, right angle header with 5.08mm pitch, rated 12A and 320V (III/2). Through hole solder termination, green PA insulating material, V0 flammability rating.
✓ Total Stock: 3 pcs

1759088 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759088 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Standards
Tape & Reel
Termination Style
Type
Voltage
Width
View Similar Products (0)

1759088 Description

Short technical summary and product information.

The Phoenix Contact 1759088 (MSTB 2,5/ 9-G-5,08) is a 9-position, single-level base strip header designed for use with plug-in connectors. It features a 5.08mm pitch and a right angle orientation, allowing plug-in direction parallel to the PCB. The header is rated for a nominal current of 12A and a rated voltage of 320V (III/2) with a rated surge voltage of 4kV.



Constructed with a green polyamide (PA) insulating material rated V0 per UL 94, the header offers robust mechanical and thermal performance. The contact mating surface is tin, and the termination style is solder for through hole mounting. The header is part of the MSTB 2,5/..-G series and is designed for wave soldering processes.



This header is suitable for PCB applications requiring a reliable plug-in connection. Its right angle orientation allows the plug-in direction to be parallel to the PCB, facilitating space-efficient designs. The 5.08mm pitch provides a standard spacing for terminal block connectors.

1759088 Quick Information

Product Type: Header
Series: MSTB 2,5/..-G
Canonical Name: Phoenix Contact MSTB 2,5/ 9-G-5,08 Base Strip Header, 9 Position, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Right Angle Header

1759088 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759088 Features

  • 9 positions with 5.08mm pitch spacing.
  • Rated 12A nominal current, 320V (III/2).
  • Right angle orientation for parallel PCB plug-in.
  • Green PA housing, V0 flammability rating.
  • Through hole solder termination, tin contacts.

1759088 Applications

  • PCB header for plug-in terminal block connectors.
  • Industrial control and automation equipment.
  • Power distribution and signal routing boards.
  • Space-constrained PCB layouts requiring right angle connection.

1759088 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1759088 header have?

The header has 9 positions in a single level.

What is the pitch of this header?

The pitch is 5.08mm (0.200 inches).

What is the current rating of the 1759088?

The nominal current rating is 12A, with a maximum load current of 12A.

What is the voltage rating?

Rated voltage is 320V for category III/2, 250V for III/3, and 400V for II/2. Rated surge voltage is 4kV for all categories.

What mounting type does this header use?

Through hole mounting with solder termination.

What is the insulating material and flammability rating?

The insulating material is polyamide (PA) with a V0 flammability rating per UL 94.

What approvals does the 1759088 have?

It is approved by CSA, VDE, IECEE CB, cULus Recognized, and EAC.
