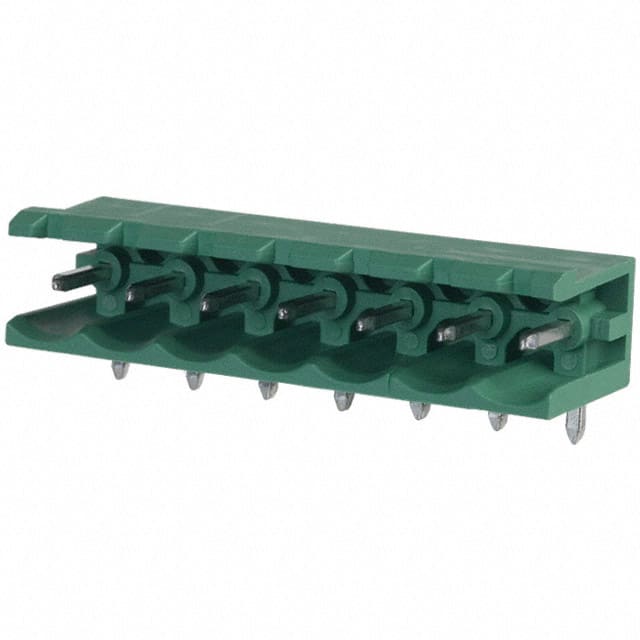

1759062 Phoenix Contact 1759062 is a 7-position, 5.08mm pitch, right angle header with shrouded male pins, rated for 12A and 320V.
Mfr Part #:

1759062

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1759062 is a 7-position, 5.08mm pitch, right angle header with shrouded male pins, rated for 12A and 320V.
✓ Total Stock: 100 pcs

1759062 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759062 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Width
View Similar Products (0)

1759062 Description

Short technical summary and product information.

The Phoenix Contact 1759062 is a 7-position header from the MSTB 2,5/..-G series. It features male pins with a 2-side shrouded design and a 5.08mm pitch. The header is rated for a nominal current of 12A and a rated voltage of 320V (III/2). It is designed for through-hole mounting with wave soldering and has a right-angle orientation, allowing plug-in direction parallel to the PCB.



The insulating material is PA with a UL94 V0 flammability rating. The contact mating finish is tin. The header is green in color and has a constructional height of 8.6 mm. It is part of the MSTB 2,5/..-G series and is manufactured in Germany.

1759062 Quick Information

Product Type: Header, Male Pins, Shrouded (2 Side)
Series: MSTB 2,5/..-G
Canonical Name: Phoenix Contact MSTB 2,5/7-G-5,08 Header, Male Pins, Shrouded (2 Side), 7 Position, 5.08mm Pitch, Through Hole, Right Angle
Subcategory: Headers, Plugs and Sockets

1759062 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759062 Features

  • 7 positions with 5.08mm pitch spacing.
  • Rated for 12A nominal current.
  • Rated voltage 320V (III/2) per EN-VDE.
  • Right-angle orientation for parallel PCB plug-in.
  • Green PA insulating material, UL94 V0 rated.

1759062 Applications

  • PCB-to-wire connections in industrial control.
  • Power distribution in terminal block assemblies.
  • Modular device design requiring flexible connectors.
  • Space-constrained PCB layouts with right-angle headers.

1759062 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1759062 header have?

The header has 7 positions.

What is the pitch of the 1759062?

The pitch is 5.08 mm (0.200 inches).

What is the current rating of the 1759062?

The nominal current is 12 A, with a maximum load current of 12 A.

What is the voltage rating of the 1759062?

The rated voltage is 320 V for category III/2, 250 V for III/3, and 400 V for II/2.

What mounting type does the 1759062 use?

Through-hole mounting with wave soldering.

What is the color of the 1759062 header?

Green.

What is the flammability rating of the insulating material?

UL94 V0.
