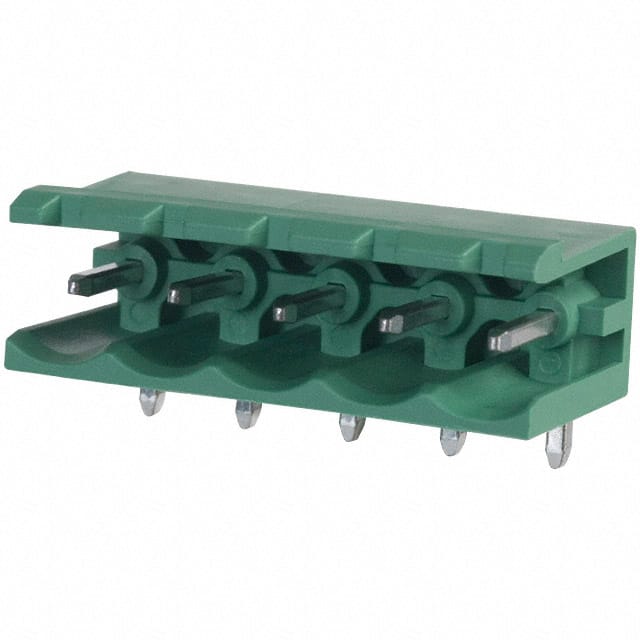

1759046 Terminal block header with 5 positions, 5.08mm pitch, right angle orientation, through hole mounting, and solder termination. Rated 300V and 15A.
Mfr Part #:

1759046

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header with 5 positions, 5.08mm pitch, right angle orientation, through hole mounting, and solder termination. Rated 300V and 15A.
✓ Total Stock: 250 pcs

1759046 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759046 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1759046 Description

Short technical summary and product information.

The Phoenix Contact 1759046 is a 5-position terminal block header designed for reliable wire-to-board connections. It features a 5.08mm pitch, right angle orientation, and through hole mounting with solder termination. The header has male pins and is shrouded on two sides for added protection. It is rated for 300V and 15A, making it suitable for power distribution and control applications. The contact mating finish is tin, and the housing is green. This component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is commonly used in industrial automation, building management, and power supply systems.

1759046 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1759046 - 5 Position 5.08mm Pitch 90° Right Angle Through Hole Header
Subcategory: Male Pins, Shrouded (2 Side)

1759046 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759046 Features

  • 5 position 5.08mm pitch header.
  • Right angle through hole mounting.
  • Rated 300V and 15A.
  • Shrouded on two sides.
  • Tin plated contacts.

1759046 Applications

  • Power distribution in control panels.
  • Industrial automation wiring.
  • Building management systems.

1759046 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

5 positions.

What is the pitch of this terminal block header?

5.08 mm (0.200 inches).

What is the voltage and current rating?

300 V and 15 A.

What type of mounting does it use?

Through hole with right angle orientation and solder termination.
