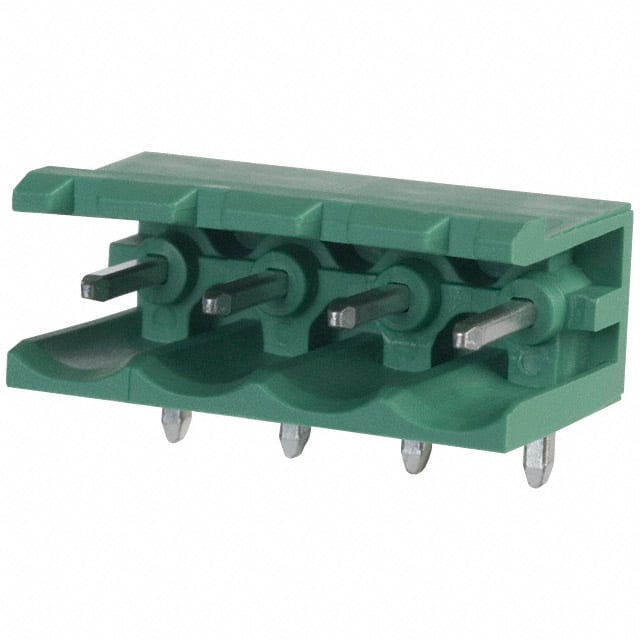

1759033 Terminal block header, male pins, shrouded, 4 positions, 5.08mm pitch, right angle orientation, through-hole mounting, tin contact finish, green housing.
Mfr Part #:

1759033

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block header, male pins, shrouded, 4 positions, 5.08mm pitch, right angle orientation, through-hole mounting, tin contact finish, green housing.
✓ Total Stock: 110 pcs

1759033 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759033 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Country of Origin
Current
Header Orientation
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Width
View Similar Products (0)

1759033 Description

Short technical summary and product information.

The Phoenix Contact 1759033 (MSTB 2,5/ 4-G-5,08) is a 4-position, single-level shrouded header designed for PCB mounting. It features a 5.08mm pitch with right-angle orientation, enabling compact wiring in industrial control and automation systems. The header accepts 12A nominal current and is rated for voltages up to 400V (II/2) with a rated surge voltage of 4kV across all overvoltage categories. The insulating material is polyamide (PA) with UL 94 V0 flammability rating, and the housing is green. Contacts are terminated via through-hole solder pins with dimensions 1 x 1 mm and a solder pin length of 3.5 mm. The part measures 12 mm in length, 20.32 mm in width, and 12.1 mm in height, with a constructional height of 8.6 mm. RoHS3, REACH, and China RoHS compliant. Packed in units of 250 pieces, manufactured in Germany.

1759033 Quick Information

Product Type: Header, Male Pins, Shrouded
Series: MSTB 2,5/..-G
Canonical Name: Phoenix Contact MSTB 2,5/ 4-G-5,08 - Header, Male Pins, Shrouded, 4 Positions, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Shrouded Headers

1759033 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759033 Features

  • 4-position right angle shrouded header.
  • 5.08mm pitch for standard spacing.
  • Rated 12A continuous current.
  • Rated voltage up to 400V (II/2).
  • Through-hole solder termination.

1759033 Applications

  • PCB mounting in industrial control systems.
  • Used in power distribution blocks.
  • Ideal for signal and power connections.
  • Suitable for wave soldering assembly.
  • Compatible with MSTB 2.5 series plugs.

1759033 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1759033 have?

It has 4 positions.

What is the pitch of this terminal block header?

The pitch is 5.08 mm.

What is the current rating of the 1759033?

The nominal and maximum load current is 12 A.

What are the voltage ratings?

Rated voltage III/2: 320 V, III/3: 250 V, II/2: 400 V.

What is the mounting type?

Through-hole mounting with solder termination.

What is the flammability rating of the housing?

UL 94 V0.

Is the 1759033 RoHS compliant?

Yes, RoHS3 compliant.
