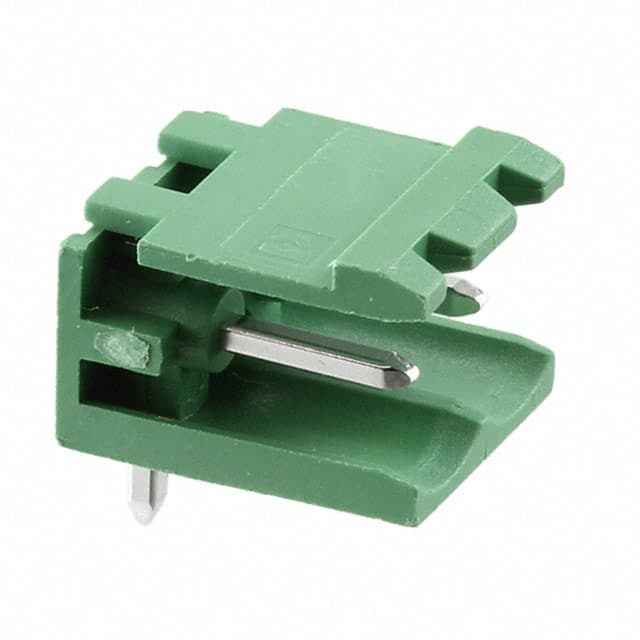

1759017 Phoenix Contact 1759017 is a 2-position terminal block header with 5.08mm pitch, right angle orientation, and through hole mounting. It features tin-plated contacts and a green housing.
Mfr Part #:

1759017

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1759017 is a 2-position terminal block header with 5.08mm pitch, right angle orientation, and through hole mounting. It features tin-plated contacts and a green housing.
✓ Total Stock: 98 pcs

1759017 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
58 pcs
On Request
58 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request 08+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1759017 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1759017 Description

Short technical summary and product information.

The Phoenix Contact 1759017 is a 2-position terminal block header designed for industrial control and automation applications. It features a 5.08mm pitch and right angle orientation, allowing for space-saving connections on PCBs. The header is shrouded on two sides for added protection. It is rated for 15A current and 300V voltage, suitable for power and signal distribution. Through hole mounting ensures secure PCB attachment, and solder termination provides reliable electrical connections. Contacts have a tin mating finish for good conductivity. The green housing is typical for Phoenix Contact terminal blocks. This component is RoHS compliant and has an MSL of Level 1 (unlimited).

1759017 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1759017 Terminal Block Header, 2 Position, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Headers

1759017 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1759017 Features

  • 2-position terminal block header.
  • 5.08mm pitch for compact designs.
  • Right angle orientation saves space.
  • Through hole mounting for secure PCB attachment.
  • Rated 15A and 300V.

1759017 Applications

  • Used in industrial control panels.
  • Suitable for power distribution boards.
  • Ideal for PLC and I/O modules.
  • Common in building automation systems.
  • Works with Phoenix Contact plug connectors.

1759017 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1759017 have?

2 positions.

What is the pitch of the 1759017?

5.08mm (0.200 inches).

What is the current rating of the 1759017?

15 A.

What is the voltage rating of the 1759017?

300 V.

What is the mounting type of the 1759017?

Through hole.

What is the contact mating finish?

Tin.

What is the color of the housing?

Green.
