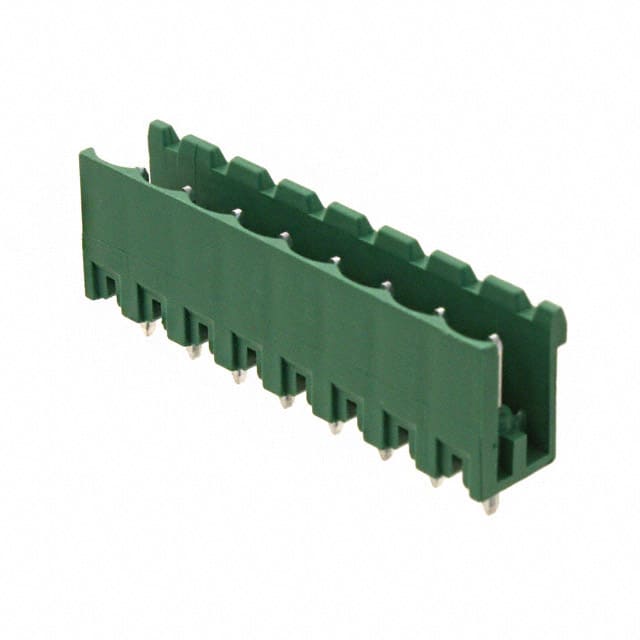

1758076 Phoenix Contact 1758076 is an 8 position, single level, vertical through hole terminal block header with 5.08mm pitch and shrouded male pins.
Mfr Part #:

1758076

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1758076 is an 8 position, single level, vertical through hole terminal block header with 5.08mm pitch and shrouded male pins.
✓ Total Stock: 328 pcs

1758076 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
314 pcs
On Request
314 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1758076 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1758076 Description

Short technical summary and product information.

The Phoenix Contact 1758076 is a terminal block header designed for wire-to-board connections in industrial control and automation systems. It features 8 positions arranged in a single level with a 5.08mm pitch, providing a compact yet robust interface for signal and power distribution.



This header has a vertical orientation and is mounted via through hole solder termination. The male pins are shrouded on two sides for added protection and alignment during mating. The contact mating finish is tin, suitable for general purpose applications. The housing is green, consistent with typical European terminal block color coding.



Electrical ratings include a current rating of 12 A and a voltage rating of 300 V, making it appropriate for moderate power and signal applications. The component is classified as RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

1758076 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1758076 - 8 Position 5.08mm Pitch Vertical Through Hole Terminal Block Header
Subcategory: Terminal Block Headers

1758076 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1758076 Features

  • 8 position single level terminal block header.
  • 5.08mm pitch for compact wiring density.
  • Vertical through hole mounting with solder termination.
  • Shrouded male pins for mating protection.
  • Rated 12A current and 300V voltage.

1758076 Applications

  • Used in industrial control panel wiring.
  • Suitable for PLC and I/O module connections.
  • Ideal for power distribution in automation systems.
  • Applicable in building management and HVAC equipment.

1758076 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1758076 have?

The 1758076 has 8 positions arranged in a single level.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating of the 1758076?

The current rating is 12 A and the voltage rating is 300 V.

What mounting type does the 1758076 use?

It uses through hole mounting with solder termination.

What is the contact finish on the 1758076?

The contact mating finish is tin.
