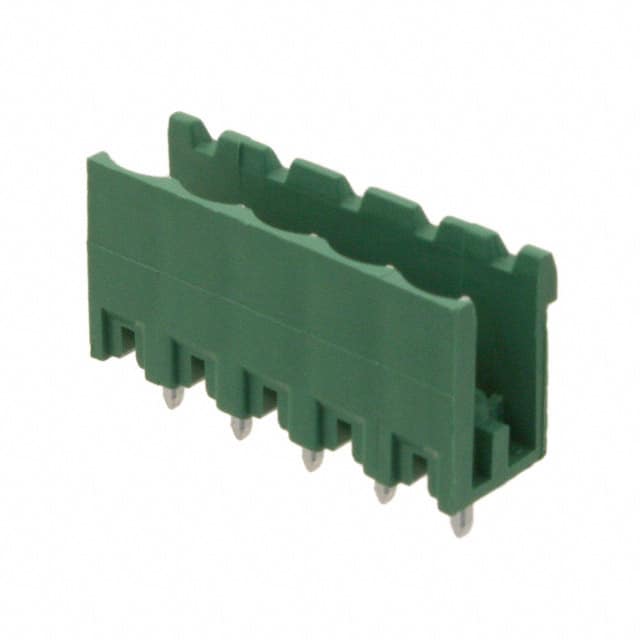

1758047 Phoenix Contact 1758047 is a 5-position, single-level terminal block header with 5.08mm pitch, vertical through-hole mounting, and tin-plated contacts. Rated at 12A and 300V.
Mfr Part #:

1758047

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1758047 is a 5-position, single-level terminal block header with 5.08mm pitch, vertical through-hole mounting, and tin-plated contacts. Rated at 12A and 300V.
✓ Total Stock: 90 pcs

1758047 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1758047 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1758047 Description

Short technical summary and product information.

The Phoenix Contact 1758047 is a shrouded (2 side) terminal block header designed for reliable wire-to-board connections in industrial control and automation systems. It features 5 positions arranged in a single level with a 5.08mm pitch, providing a compact yet robust interface.



The header is rated for 12A current and 300V voltage, making it suitable for moderate power distribution and signal routing. The vertical through-hole mounting style ensures a secure mechanical connection to the PCB, while the tin-plated contact finish offers good solderability and corrosion resistance.



The green housing color is standard for terminal block components and aids in visual identification during assembly and maintenance.

1758047 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1758047 - 5 Position 5.08mm Pitch Vertical Through-Hole Terminal Block Header
Subcategory: Terminal Block Headers

1758047 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1758047 Features

  • 5 positions with 5.08mm pitch spacing.
  • Rated for 12A current and 300V.
  • Vertical through-hole solder mounting.
  • Tin-plated contact mating finish.
  • Shrouded (2 side) header design.

1758047 Applications

  • Industrial control panel wiring.
  • Power distribution on PCBs.
  • Sensor and actuator connections.
  • Automation equipment signal interfaces.

1758047 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1758047 header have?

It has 5 positions.

What is the pitch of this terminal block header?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

The current rating is 12A and the voltage rating is 300V.

What is the mounting type for this header?

It is a through-hole mounting component with solder termination.

What is the color of the housing?

The housing is green.
