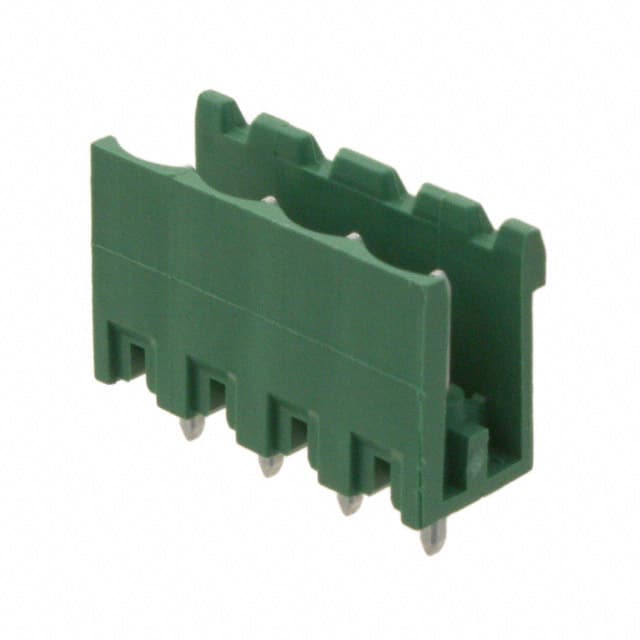

1758034 4-position terminal block header with vertical orientation. Features 5.08mm pitch, through hole mounting, and shrouded design.
Mfr Part #:

1758034

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
4-position terminal block header with vertical orientation. Features 5.08mm pitch, through hole mounting, and shrouded design.
✓ Total Stock: 59 pcs

1758034 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
59 pcs
On Request
59 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1758034 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1758034 Description

Short technical summary and product information.

This is a 4-position shrouded header from Phoenix Contact (MPN 1758034), part of the terminal block header family. It features a vertical orientation with male pins and 2-side shrouding for secure mating.



The header has a pitch of 5.08mm (0.200") and supports one level with 4 positions per level. Electrical ratings are 300V and 12A, making it suitable for power distribution in control systems. Contact mating finish is tin, and the housing is green.



Mounting is through hole with solder termination. The component is designed for PCB mounting in industrial equipment, offering reliable connections for wire-to-board applications.

1758034 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1758034 - Header, Male Pins, Shrouded (2 Side), 4 Position, 5.08mm Pitch, Vertical, Through Hole
Subcategory: Terminal Block Headers

1758034 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1758034 Features

  • 4 position vertical shrouded header.
  • 5.08mm pitch for compact layouts.
  • Rated for 300V and 12A operation.
  • Through hole solder termination.
  • Green housing with tin contacts.

1758034 Applications

  • Used in industrial control panels.
  • Suitable for PCB-to-wire connections.
  • Ideal for power distribution blocks.

1758034 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions

What is the pitch of this header?

5.08mm (0.200")

What is the current rating?

12 A

What is the voltage rating?

300 V

What is the mounting type?

Through Hole

What is the header orientation?

Vertical

What is the contact finish?

Tin
