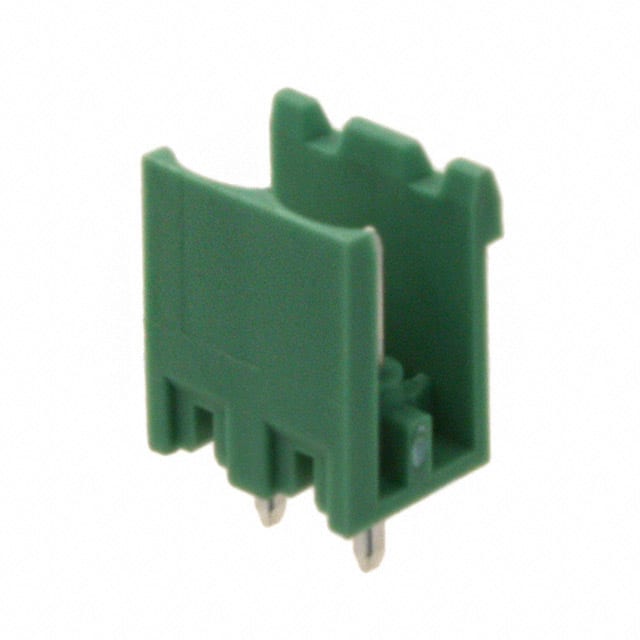

1758018 Phoenix Contact 1758018 is a 2-position, 5.08mm pitch shrouded header for terminal blocks. It features vertical through-hole mounting, tin-plated contacts, and a green PA insulating body rated V0.
Mfr Part #:

1758018

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1758018 is a 2-position, 5.08mm pitch shrouded header for terminal blocks. It features vertical through-hole mounting, tin-plated contacts, and a green PA insulating body rated V0.
✓ Total Stock: 1,850 pcs

1758018 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1,850 pcs
On Request
1850 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1758018 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Hole Diameter
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1758018 Description

Short technical summary and product information.

The Phoenix Contact 1758018 is a 2-position shrouded header from the MSTBV 2,5/..-G series. It features a 5.08mm pitch and male pins designed for use with compatible plug connectors. The header is rated for 12A continuous current and 300V voltage (rated voltage III/2: 320V, III/3: 250V) with a rated surge voltage of 4kV. The insulating material is polyamide (PA) with a V0 flammability rating per UL 94.



Mechanically, the header is designed for through-hole mounting with a vertical orientation and solder termination. Key dimensions include a length of 8.6mm, constructional height of 12mm, solder pin length of 3.9mm, pin dimensions of 1x1mm, and a hole diameter of 1.4mm. The housing is green and the contacts are tin-plated. Each piece weighs 0.690g.



The 1758018 is packed in units of 250 with a minimum order quantity of 250. It is compliant with China RoHS (verified) and RoHS/REACH (unverified). This header is suitable for industrial control panels, power distribution systems, and automation equipment where reliable PCB-mounted terminal block connections are required.

1758018 Quick Information

Product Type: Terminal Block Header, Male Pins, Shrouded
Series: MSTBV 2,5/..-G
Canonical Name: Phoenix Contact MSTBV 2,5/ 2-G-5,08 Header, Male Pins, Shrouded (2 Side), 2 Position, 5.08mm Pitch, Through Hole, Vertical
Subcategory: Terminal Block Headers

1758018 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1758018 Features

  • 2-position, 5.08mm pitch shrouded header.
  • Rated for 12A continuous current.
  • Vertical through-hole mounting design.
  • Tin-plated contacts for reliable connection.
  • Green PA insulating body, V0 rated.

1758018 Applications

  • Used in industrial control panels.
  • Suitable for power distribution systems.
  • Ideal for automation equipment wiring.
  • Common in terminal block assemblies.

1758018 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1758018 header have?

2 positions.

What is the pitch of the 1758018 header?

5.08 mm.

What is the rated current of the 1758018 header?

12 A.

What is the rated voltage of the 1758018 header?

300 V (rated voltage III/2: 320 V, III/3: 250 V).

What is the mounting type of the 1758018 header?

Through hole, vertical orientation.

What color is the 1758018 header?

Green.

What is the flammability rating of the 1758018 header?

V0 according to UL 94.
